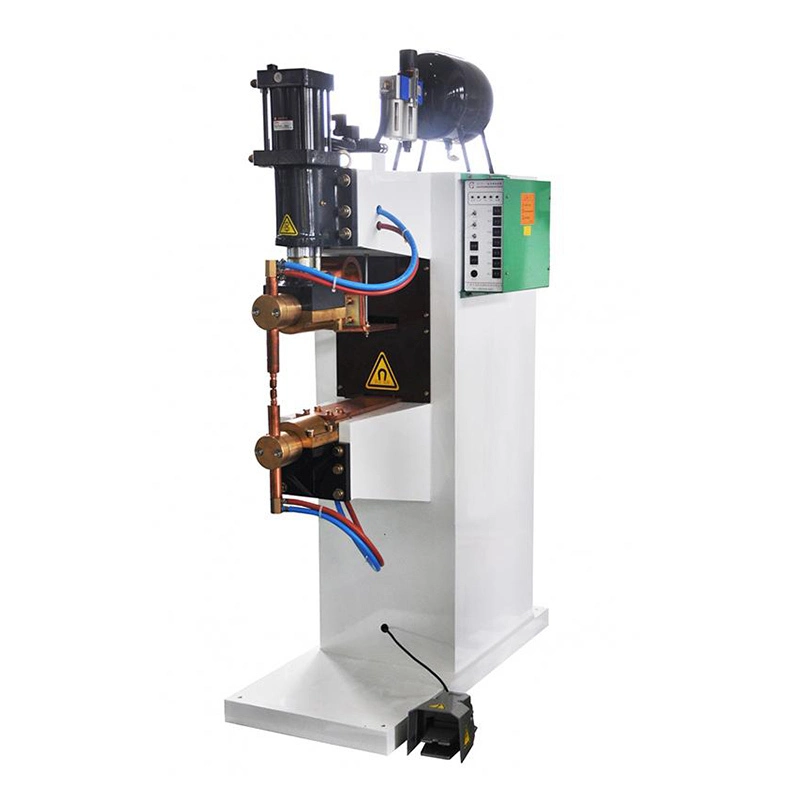

AC Spot / Press Welder DN-80KVA

H series AC resistance spot welding and projection machine is mainly applied to spot welding process and projection process of ferrous metal.

Model: DN-80KVA

MOQ: 1pcs

Price terms: FOB Guangzhou

Warranty: 1 year

After sale service: Free training service

Industries: auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

Description

Resistance welding machines range from 25KVA to 150KVA.
The maximum short circuit current of our welding machine is from 12KA to 34KA.
The welding pressure of our welding machine is from 2510N to 15000N at 6 bar gas.
The ring shaft guide pressure welding head is the best choice for this kind of welding equipment.
The ring shaft pressure guide head is one of the typical features for this type of welding equipment. The actual neck depth should be 950 mm.
The standard uses single acting rollers.
Single energy rollers are a standard feature of our welding equipment. In addition, a two-stroke cylinder and a servo-electric cylinder are compatible with our welding machines upon customer request.

Specification

Model #		DN-80
Rated Capacity	KVA	80
Power Supply	V/Φ/Hz	380/1PH/50HZ
Max. Primary Current	A	158
Primary Cable	MM2	35
Max. Short Circuit Current	KA	25
Rated Duty Cycle	%	50
Secondary Empty Voltage	V	7.6
Welding Cylinder Size	Φ*L	Φ125*100
Working Pressure	N	6000
Compressed Air Pressure	MPa	0.6～0.7
Cooling Water Consumption	L/MIN	8
Compressed Air Consumption	L/time	3.56
Throat Depth	MM	543
Arm Gap	MM	364
Electrode Size	MM	Φ30
Dimensions	H(MM)	1803
	L(MM)	1284

	W(MM)	702

Application

Widely used in the spot welding, projection welding of many different materials. And It is widely used in auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
