In our previous industry insights, Heron highlighted the key challenges in nut projection welding and demonstrated how our medium-voltage capacitor discharge welder addresses them with advanced technology. Today, we take it a step further. Through two real-world application cases, we will showcase the proven performance of this technology on actual production lines and explore how it is shaping the future of automotive manufacturing.
I.Technical Case: High-Efficiency Projection Welding of Automotive Subframe Nuts, Achieving a 5-Second Cycle Time per Weld

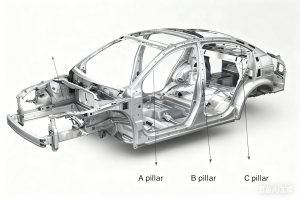

In automotive parts manufacturing, the welding quality of subframe nuts, A/B/C-pillar nuts, and door ring bolts directly impacts vehicle safety. However, many leading automotive parts companies have long faced challenges when welding hot-formed steel and high-strength steel:
- Nuts detach easily during welding
- Frequent rework with arc welding
- High labor and equipment costs
- Low production efficiency and excessive consumable waste

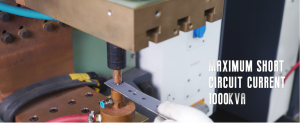

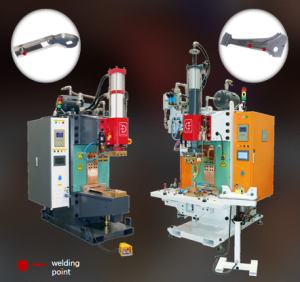

To address these challenges, Heron introduced the DR-15000 medium-voltage capacitor discharge welder, replacing traditional welding methods with medium-voltage capacitor discharge resistance welding technology, achieving a breakthrough in mass production performance.
Heron’s customized capacitor design delivers lower ESR and ESL, slower degradation, less heat generation, and longer lifespan. Combined with precise control technology, voltage accuracy reaches ±1V, eliminating weak welds at the source and entirely removing the need for re-welding. Heron’s capacitor discharge projection welder provides multi-dimensional value upgrades:
- Economic Value: Compact equipment design saves floor space; eliminates tapping, re-threading, and repair welding,reducing both labor and equipment
- OperationalValue: Simplifies production processes, improves standardization in automotive parts manufacturing, and enhancesindustry efficiency.
- Environmentally Value: No welding wire or shielding gas required; faster charging time reduces energy consumption, supportinggreen production.
As a metal joining expert trusted by over 30 Fortune 500 companies, Heron leverages core welding technologies to reduce automotive manufacturing costs while improving quality and ROI. If your production line faces challenges in welding dissimilar steels, contact us to explore customized solutions.
II. Honors & Technical Breakthroughs — Award-Winning Solution for Hot-Formed Steel Projection Welding
To address the challenge of welding hot-formed steel, Heron introduced the “Application Research and Industrialization of Intelligent Medium-Voltage Capacitor Discharge Welding for Hot-Formed Steel.” This innovation not only overcome critical technical barriers but also earned the Third Prize of Guangdong Provincial Machinery Industry Science and Technology Award.
Key Technical Achievements:
- Preserved Joint Strength: Ultra-short welding time (<30ms) combined with precise current controlprevents heat-affected zone (HAZ) softening, maintaining the material’s original joint strength and toughness.
- Protection of the Galvanized Layer: Theshort welding time minimizes thermalstress, fully preserving the galvanized layer on threads and plate surfaces, eliminating cracking and deformation, and meeting automotive safety component welding requirements.
- Precision Temperature Control & Quality Monitoring: With 1V voltage control accuracy and a real-timequality monitoring system,the machine collects critical parameters (current, pressure, etc.) to detect defects and ensure consistency in mass production welds.
- Reliable Welding of Complex Metals: Instantaneous high-current output preventsprotrusions collapse during molten pool formation, enabling stable welding of brass, copper, high-strength steel, and other difficult-to-weld materials.
III. Future Outlook: Unlocking Broader Potential Across High-End Manufacturing
With the rise of Industry 4.0 and the rapid growth of sectors such as new energy vehicles and aerospace, the application scenarios for Heron’s medium-voltage capacitor discharge welder are continuously expanding.
- In new energy vehicles, it supports structural innovations such as steel-aluminum joining for battery trays and lightweight vehicle bodies, delivering both production efficiency and environmental compliance.
- In high-end precision manufacturing, it meets the industry’s demand for high-reliability welding and tight dimensional tolerances, enabling the production of advanced components with consistent quality.
From technological innovation to on-site implementation, and from solving pain points to shaping new industry standards, Heron remains committed to its mission: “Make joining simple.” We continue to empower the high-quality development of manufacturing worldwide.
If your production line faces challenges with nut projection welding or any metal joining process, follow Heron to explore customized technical solutions tailored for your industry.
