Projection Welding Robotic Working Cell - L Series 3

Projection Welding Robotic Working Cell – L Series 3

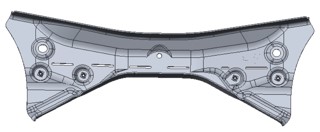

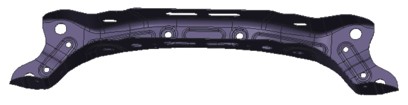

Part:                Upper plate of rear subframe
Material :               Galvanized sheet
Process :          Projection welding
INQUIRY

Benefits of Projection Welding Robotic Working Cell

  • 10 minutes’ Program Set Up
  • 8 hours’ Mastering/Operating/Maintaining
  • Highly Standardized Components
  • Modular Design
  • Compatible with > 64 Fixtures
  • Intelligent Data Analytics Software Service
Projection Welding Robotic Working Cell - L Series 3
  • 1. 2D Camera
  • 2. Robot
  • 3. Feeder
  • 4. Discharge cart
  • 5. Projection welder
  • 6. 3D Camera
  • 7. Control cabinet
  • 8. Robotic gripper
  • 9. HMI
  • 10.Relay station
  • 11. Security fence
  • 12. Feeding cart
  • 13. Gripper bracket

Application

Specification

Weldable

Thermoformed sheet, galvanized sheet

Equipment color

±0.05~±0.5mm

Out-of-process Time

5s

Flexible Manufacturing

Multi-Model Series Production

Installation Method

Common Base Floor

Hardware

Robots*2, Robotic Grippers*4, 2D Camera*2,  Projection Welder*1, Infeed Port *1, Outfeed Port*1

Software

Standard electrical drawings; Standard PLC recipe programme

Floor Space

 7.5*4.5 ㎡
