Projection Welding Robotic Working Cell

Projection Welding Robotic Working Cell – L Series 4

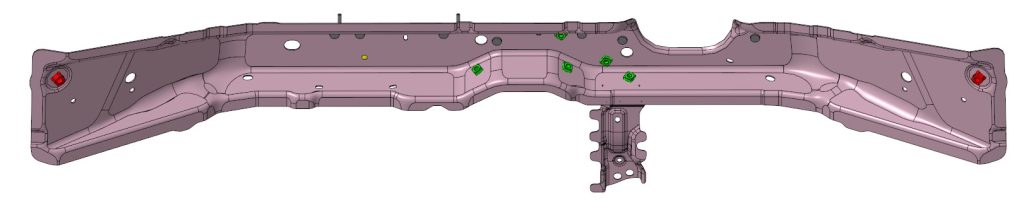

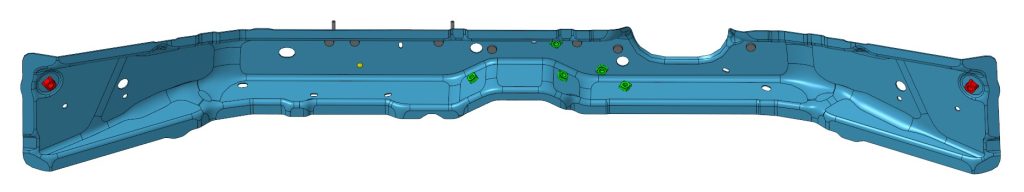

Part: Front bumper crossbeam assembly
Material : Thermoformed sheet
Process : Projection welding
Price terms: FOB Guangzhou
After-sales service: Free training service
Industries: Automotive industry

Benefits of Projection Welding Robotic Working Cell

10 minutes’ Program Set Up
8 hours’ Mastering/Operating/Maintaining
Highly Standardized Components
Modular Design
Compatible with > 64 Fixtures
Intelligent Data Analytics Software Service

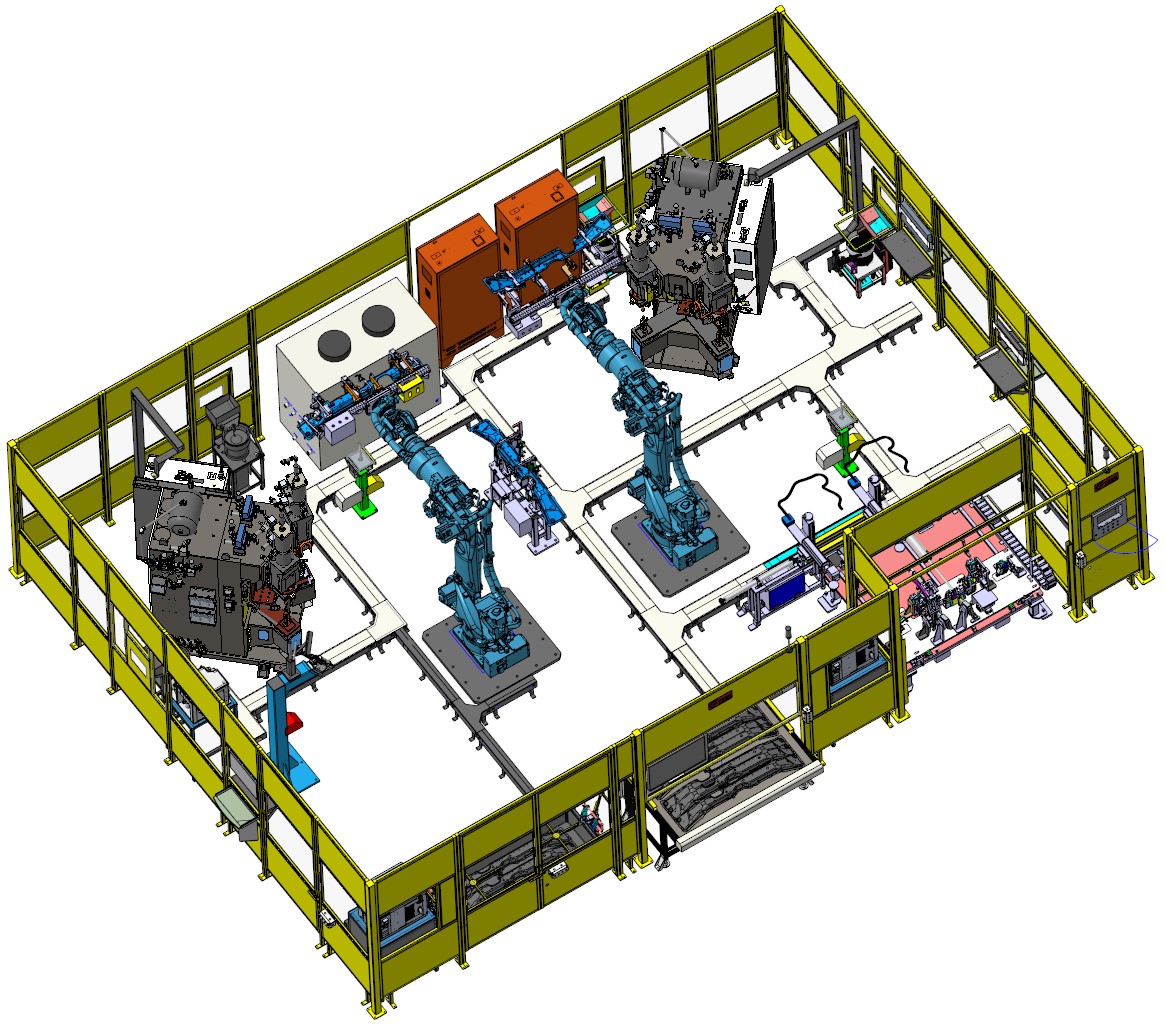

1. 2D Camera
2. Robot
3. Feeder
4. Material discharge conveyor line
5. Projection welder
6. Laser Marking Machine
7. Control cabinet
8. Robotic gripper
9. HMI
10.Relay station
11. Security fence
12. Feeding slide table
13. Stud welding gun
14. Chiller

Application

Specification

Weldable	Thermoformed sheet, galvanized sheet
Equipment color	±0.05~±0.5mm
Out-of-process Time	5s
Flexible Manufacturing	Multi-Model Series Production
Installation Method	Common Base Floor
Hardware	Robots2, Robotic Grippers2, 2D Camera3, Projection Welders2, Infeed Port 1, Outfeed Port1
Software	Standard electrical drawings; Standard PLC recipe programme
Floor Space	10*7 ㎡
