Stranded Wire Welding and Cutting Machines

  • MFDC and AC welding/cutting machines for braided and stranded copper wire

  • Multiple capacity models from 55KVA up to 880KVA for varied production needs

  • Guarantees highest consistency and quality through strict process monitoring and management

  • Delivers precise, reliable welds and cuts for automotive, electrical, and appliance industries

  • Efficient, customizable solutions for hard-to-weld metals and complex production lines

INQUIRY

Heron’s Stranded Wire Welding and Cutting Machines deliver top-quality and consistent results for braided copper and stranded wire production. With versatile power levels and robust design, they’re ideal for automotive, electrical, and appliance manufacturers seeking reliable processing solutions.

880KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-880-14007

Model # DB-880-14007
Rated capacity KVA 880
Power supply V/Φ/Hz 380/3/50
Max. primary current A 700
Max. Short Circuit Current KA 110
Max. working pressure kN 25
Dimensions (LxWxH) mm 2430x1350x2600

660KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-660-13009

Model # DB-660-13009
Rated capacity KVA 660
Power supply V/Φ/Hz 380/3/50
Max. primary current A 500
Max. Short Circuit Current KA 75
Max. working pressure kN /
Dimensions (LxWxH) mm 2874x1320x2297

440KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-440-14020

Model # DB-440-14020
Rated capacity KVA 440
Power supply V/Φ/Hz 380/3/50
Max. primary current A 140
Max. Short Circuit Current KA 60
Max. working pressure kN 12
Dimensions (LxWxH) mm 2469x1260x2225

330KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-330-15004

Model # DB-330-15004
Rated capacity KVA 330
Power supply V/Φ/Hz 380/3/50
Max. primary current A 240
Max. Short Circuit Current KA 43
Max. working pressure kN 9
Dimensions (LxWxH) mm 2600x1260x2570

165KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-165-17005

Model # DB-165-17005
Rated capacity KVA 165
Power supply V/Φ/Hz 380/3/50
Max. primary current A 125
Max. Short Circuit Current KA 31
Max. working pressure kN 9.8
Dimensions (LxWxH) mm 1500x2639x2225

110KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-110-19003

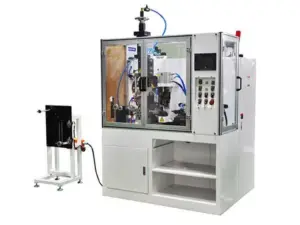

stranded wire welding and cutting machines

Model # DB-110-19003
Rated capacity KVA 110
Power supply V/Φ/Hz 380/3/50
Max. primary current A 120
Max. Short Circuit Current KA 24
Max. working pressure kN /
Dimensions (LxWxH) mm 1915x950x2306

55KVA MFDC Customized Welding and Cutting Machine for Braided Copper DB-55-17101

Model # DB-55-17101
Rated capacity KVA 55
Power supply V/Φ/Hz 380/3/50
Max. primary current A 121
Max. Short Circuit Current KA 20
Max. working pressure kN 2.5
Dimensions (LxWxH) mm 990x1370x1797

80KVA AC Customized Welding and Cutting Machine for Braided Copper DN-80-13006

Model # DN-80-13006
Rated capacity KVA 80
Power supply V/Φ/Hz 380/1/50
Max. primary current A 158
Max. Short Circuit Current KA 23
Max. working pressure kN /
Dimensions (LxWxH) mm 1300x1070x1957

50KVA AC Customized Welding and Cutting Machine for Braided Copper DN-50-14005

stranded wire welding and cutting machines

Model # DN-50-14005
Rated capacity KVA 50
Power supply V/Φ/Hz 380/1/50
Max. primary current A 220
Max. Short Circuit Current KA 18
Max. working pressure kN /
Dimensions (LxWxH) mm 1300x1070x1958

Its quality is ensured with the quality control and management system in our factory.
