Welding Robotic Working Cell - L Series 1

Projection Welding Robotic Working Cell – L Series 1

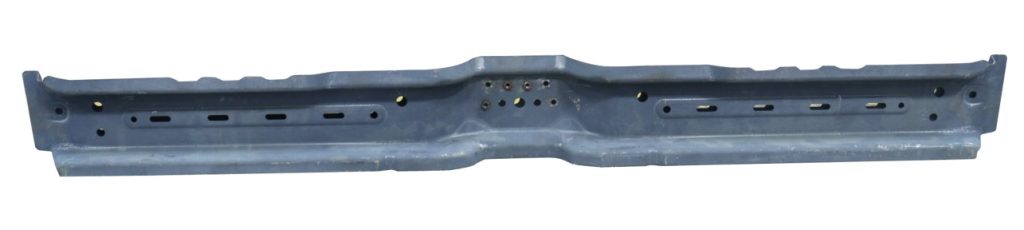

Part:                  Reinforcement plates for Waistline
Material :               Galvanized sheet
Process :          Projection welding
INQUIRY

Benefits of Projection Welding Robotic Working Cell – L Series 1

  • 10 minutes’ Program Set Up
  • 8 hours’ Mastering/Operating/Maintaining
  • Highly Standardized Components
  • Modular Design
  • Compatible with > 64 Fixtures
  • Intelligent Data Analytics Software Service

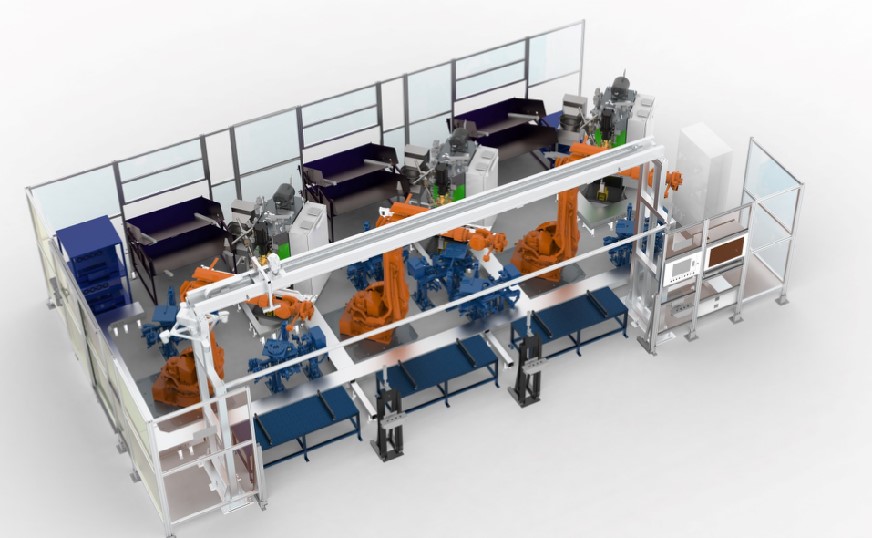

  • 1. 3D Camera
  • 2. Robot
  • 3. Feeder
  • 4. Unloading
  • 5. Projection welder
  • 6. Movement track
  • 7. Control cabinet
  • 8. Robotic gripper
  • 9. HMI
  • 10. Gripper bracket
  • 11. Security fence

Application



Specification:Welding Robotic Working Cell – L Series 1

Weldable Thermoformed sheet, galvanized sheet
Equipment color ±0.05~±0.5mm
Out-of-process Time 5s
Flexible Manufacturing  Multi-Model Series Production
Installation Method  Common Base Floor
Hardware  Robot*3, Robotic Grippers*3, 3D Camera*1,  Projection Welder*3, Infeed Ports *3, Outfeed Ports*3
Software  Standard electrical drawings; Standard PLC recipe programme
Floor Space   9.7*5.5 ㎡
