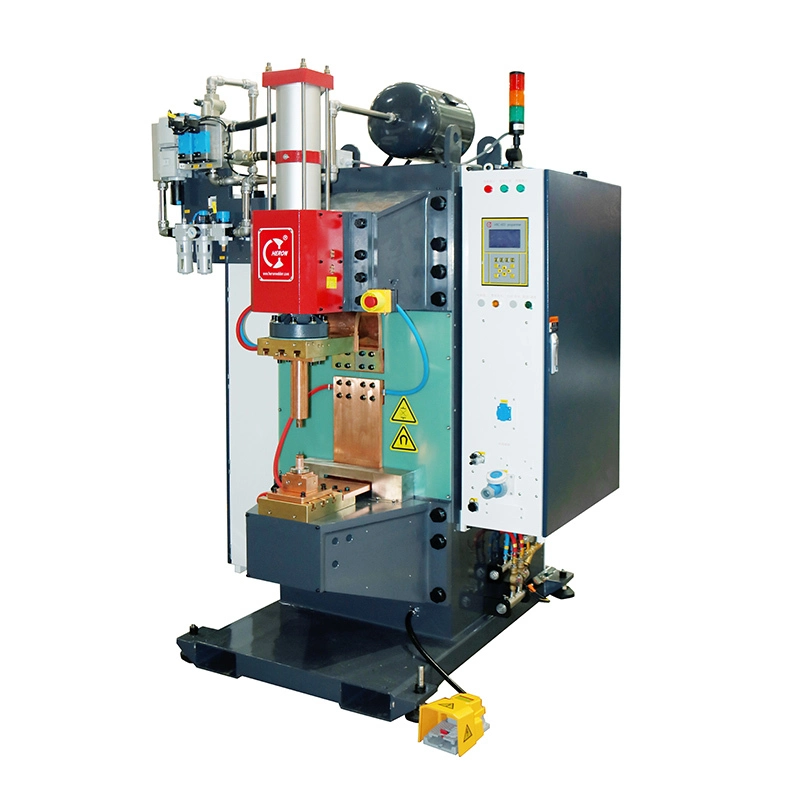

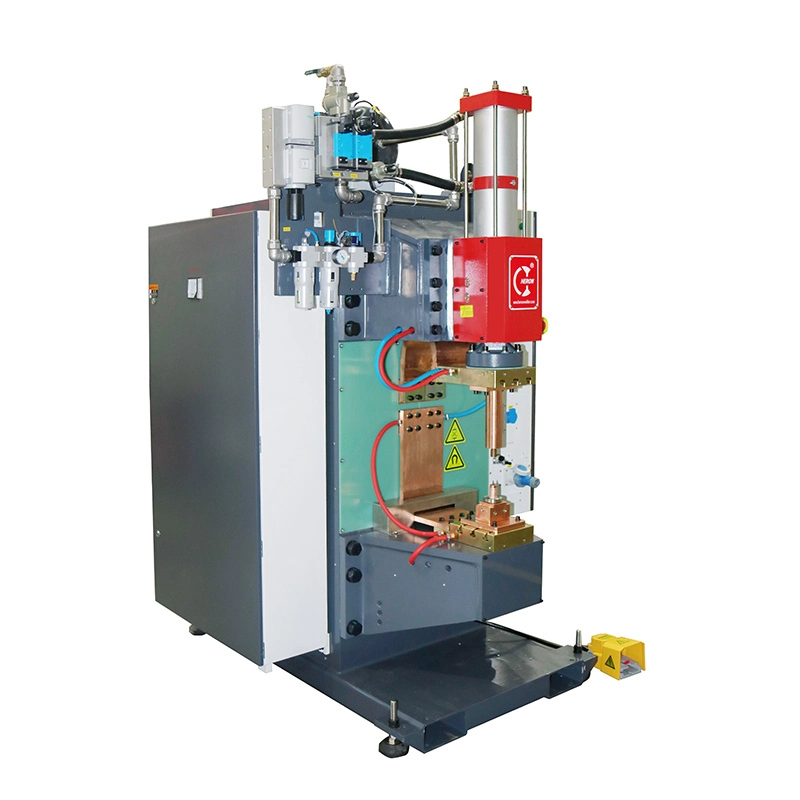

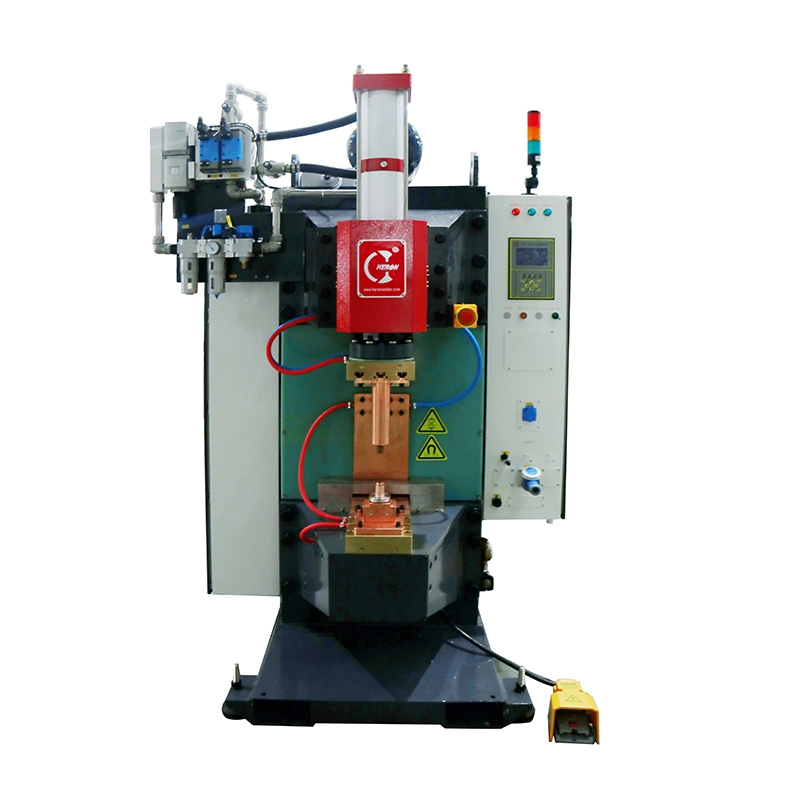

25KJ Capacitor Discharge Welder

The H Type CDW Spot & Projection Welder DR-25000J with roller ram, and strong frame, which ensure good spot and projection welding process reliable, and the maximum shortcut current can be 1000KA.

Model: Type H; 25000J

MOQ: 1pcs

Price terms: FOB Guangzhou

Warranty: 1 year

After sale service: Free training service

Industries: auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

Description

The power of our resistance welding machines ranges from 10 KJ to 120 KJ, the maximum short circuit current of our welding machines ranges from 90 KA to 1000 KA and the single stroke cylinder is the standard configuration of our welding machines. In addition, two-stroke cylinders and electric servo cylinders are compatible with our welding machines, which are optional for customers.

Specification

Model #		DR-25000
Volume of capacitor	μf	50000
Rated Capacity	KVA	100
Power Supply	V/Φ/Hz	380/3/50
Max. Primary Current	A	132
Primary Cable	MM2	50
Max. Short Circuit Current	KA	140
Rated Duty Cycle	%	50
Secondary Empty Voltage	V	20/26.6
Welding Cylinder Size	Φ*L	Φ200*150
Max. Working Pressure	N	15000
Throat Depth	MM	400
Arm Gap	MM	500
Dimensions	H(MM)	2437
	L(MM)	1500
	W(MM)	1451

Application

It is widely used in automobile & auto parts industry, home appliance industry, compressor industry, hardware industry, etc.CDWH series capacitor discharge welder and real-time quality control system aiming to improve the continuous reliability of welding quality. Besides, the system also supports transmission of welding parameter to external computer during the welding process.

Welding Samples

Machine Configuration

Welding head can be	Roller ram or round shaft guide , cylinder specifications φ160 * 120
Machine body	Graphite gray ral7024, back door signal white ral9003;
Control box	Front: Signal white ral9003, body graphite gray ral7024
Welding head	Red rat4l001
Controller	Hrc-211
Throat depth	500mm, platen gap: 340mm
Rated capacity	25000J
