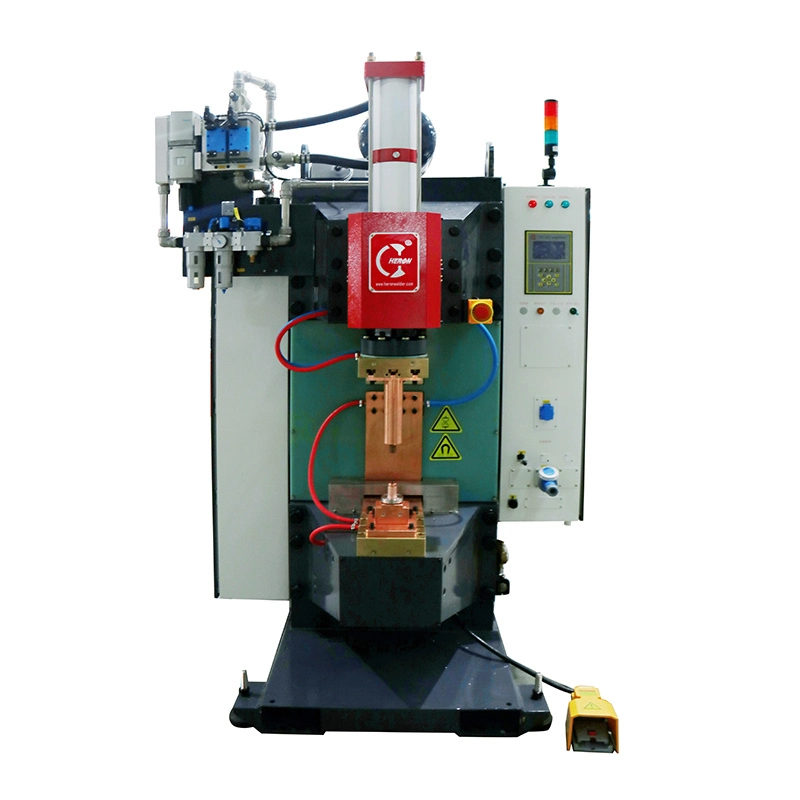

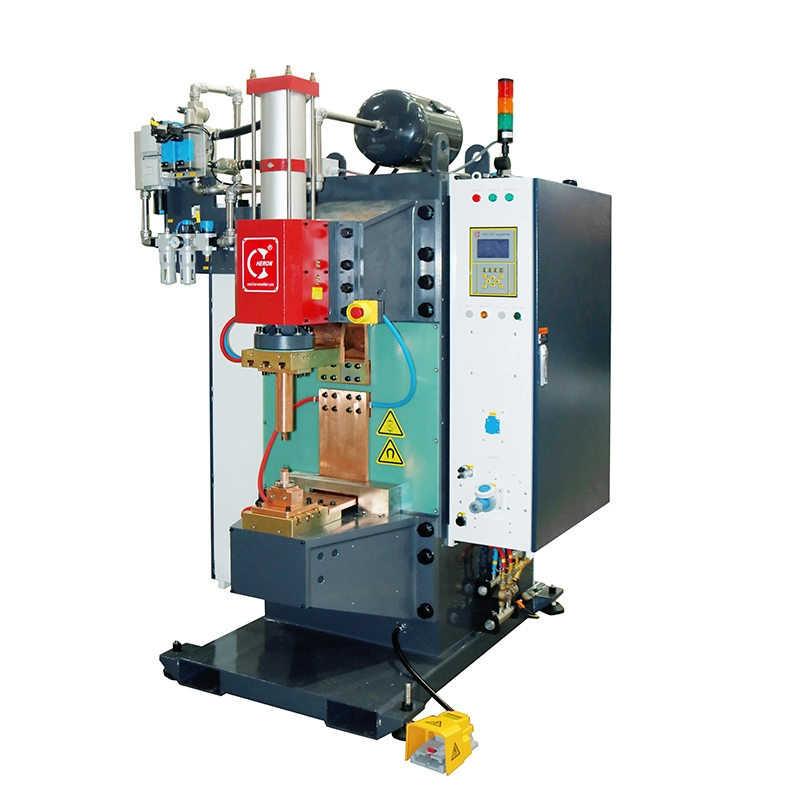

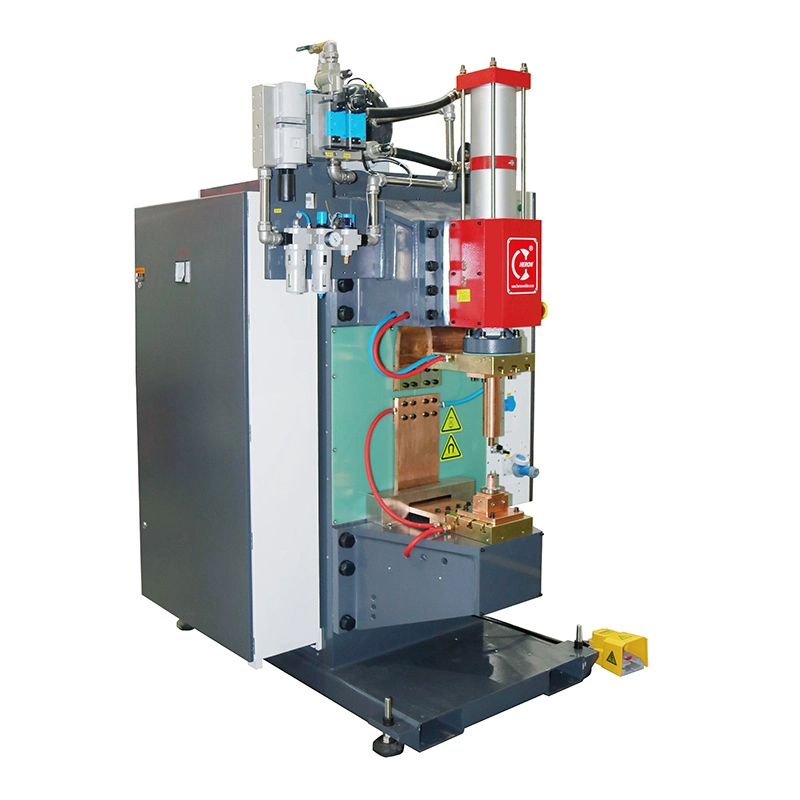

30KJ Capacitor Discharge Welder

High configuration capacitor discharge resistance welding machine is mainly applied to screw nut and multi spot projection welding process and has unique advantage in hot-forming steel and galvanized steel screw nut projection welding.

Model: Type H; 30000J

MOQ: 1pcs

Price terms: FOB Guangzhou

Warranty: 1 year

After sale service: Free training service

Industries: auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

Description

Medium voltage capacitor discharge resistance welding technology was invented by HERON in 201

Medium voltage capacitor discharge resistance welding technology was invented by HERON in 2010 and features non-polarized capacitors made of metal film that do not easily decay or explode.

0 and features non-polarized capacitors made of metal film that do not easily decay or explode.

Specification

Model #		DR-30000
Volume of capacitor	μf	60000
Rated Capacity	KVA	100
Power Supply	V/Φ/Hz	380/3/50
Max. Primary Current	A	132
Primary Cable	MM2	50
Max. Short Circuit Current	KA	140
Rated Duty Cycle	%	50
Secondary Empty Voltage	V	20/26.6
Welding Cylinder Size	Φ*L	Φ250*150
Max. Working Pressure	N	24000
Throat Depth	MM	400
Arm Gap	MM	500
Dimensions	H(MM)	2437
	L(MM)	1500
	W(MM)	1451

Application

It is widely used for spot welding of high strength steels, hot formed steels, ferrous and non-ferrous metals.

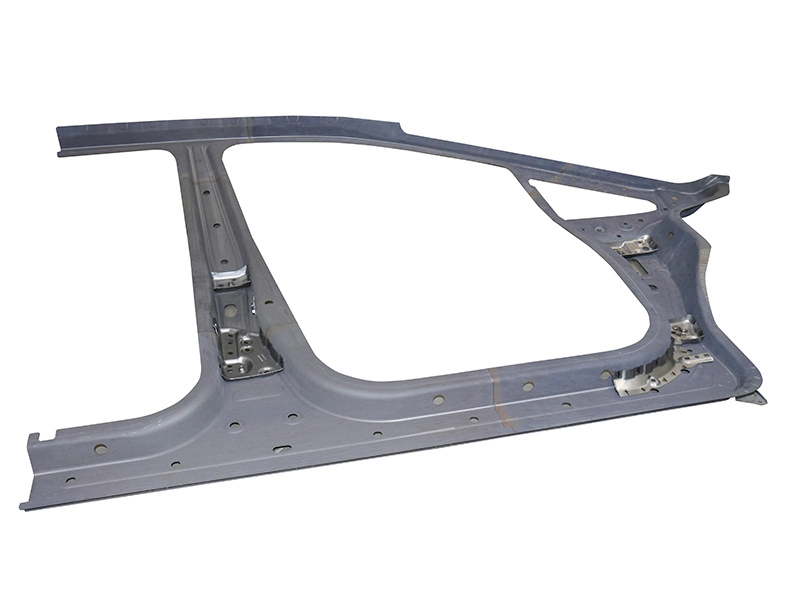

Welding Samples

Machine Configuration

Welding head can be	Roller ram or round shaft guide , cylinder specifications φ160 * 120
Machine body	Graphite gray ral7024, back door signal white ral9003;
Control box	Front: Signal white ral9003, body graphite gray ral7024
Welding head	Red rat4l001
Controller	Hrc-211
Throat depth	500mm, platen gap: 340mm
Rated capacity	30000J
