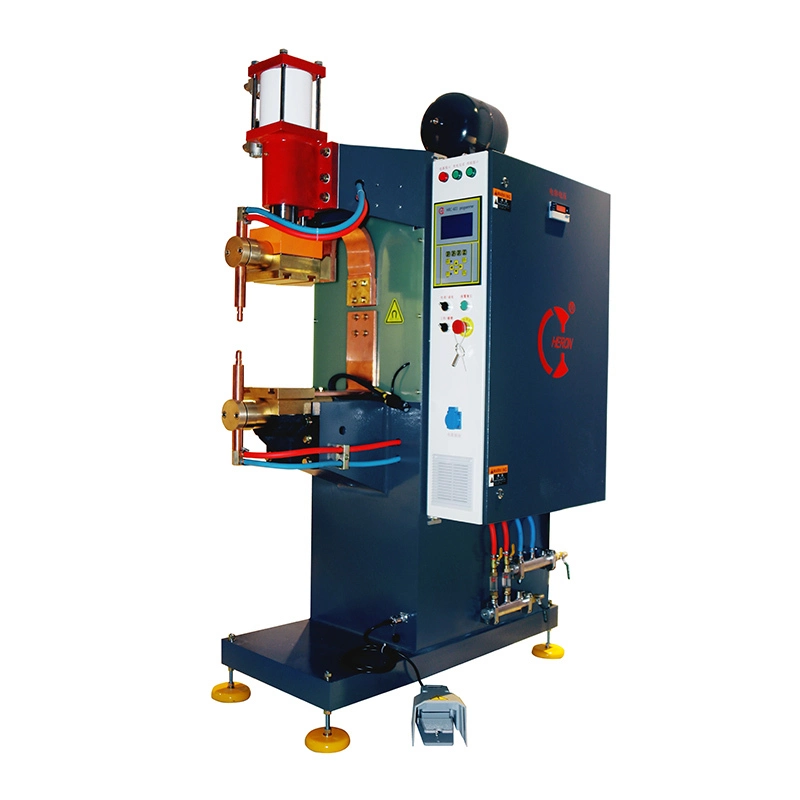

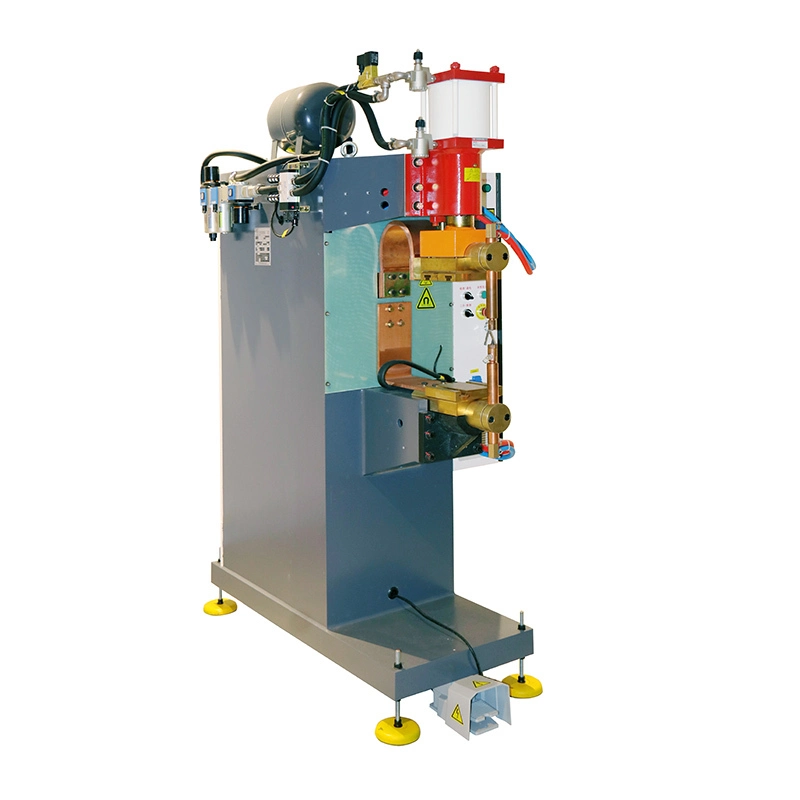

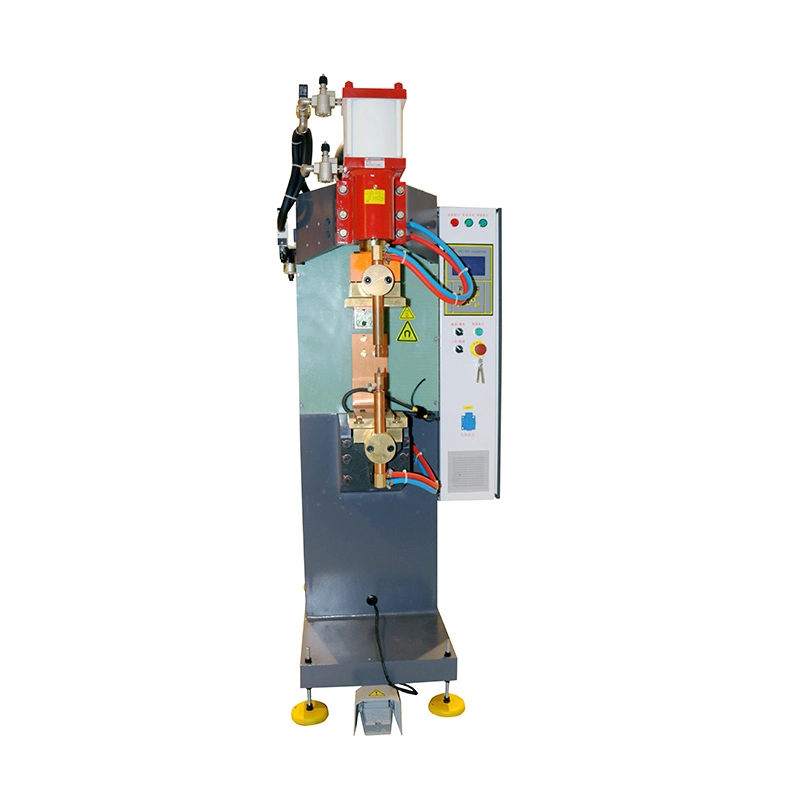

3KJ Capacitor Discharge Welder

This capacitor discharge resistance welding machine is mainly applied to screw nut and multi spot projection welding process and has unique advantage in hot-forming steel and galvanized steel screw nut projection welding.

Model: Type L; 3KJ

MOQ: 1pcs

Price terms: FOB Guangzhou

Warranty: 1 year

After sale service: Free training service

Industries: auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

Description

The L Type CDW Spot & Projection Welder DR-3000J with roller ram, and strong frame, which ensure good spot and projection welding process reliable, and the maximum shortcut current can be 1000KA.

Specification

Model #		DR-3000
Volume of capacitor	μf	30000
Rated Capacity	KVA	5
Power Supply	V/Φ/Hz	380/3/50
Max. Primary Current	A	23
Primary Cable	MM2	16
Max. Short Circuit Current	KA	28
Rated Duty Cycle	%	50
Secondary Empty Voltage	V	10
Welding Cylinder Size	Φ*L	Φ100*100
Max. Working Pressure	N	3900
Throat Depth	MM	450
Arm Gap	MM	313
Dimensions	H(MM)	1885
	L(MM)	1239
	W(MM)	754

Application

It is widely used in automobile & auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

Welding effect

Machine Configuration

Welding head can be	Roller ram or round shaft guide , cylinder specifications φ160 * 120
Machine body	Graphite gray ral7024, back door signal white ral9003.
Control box	Front: Signal white ral9003, body graphite gray ral7024
Welding head	Red rat4l001
Controller	HRC-211
Throat depth	500mm, platen gap: 340mm
Rated capacity	3000J
