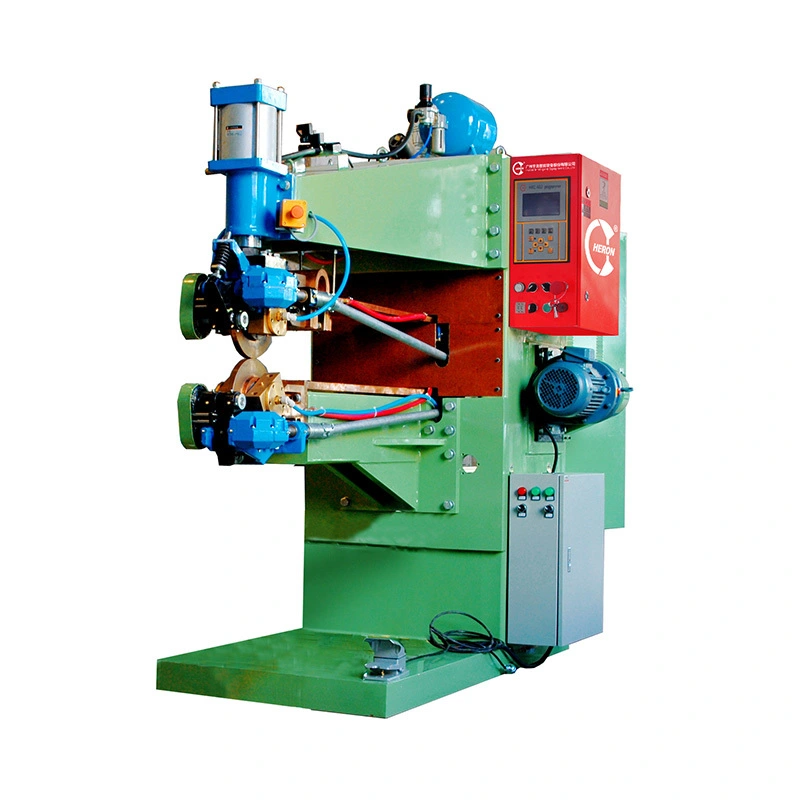

50-200KVA AC Longitudinal Seam Welder

50-200KVA AC Longitudinal Seam Welder

Model: 50/80/100/150/200KVA,AC.
MOQ: 1pcs
Price terms: FOB Guangzhou
Warranty: 1 year
After sale service: Free training service
Industries: Auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
INQUIRY

Description

The machine uses HRC802 and HRC medium frequency welding transformer from Heron’s medium frequency inverter controller. It also features Heron’s patented silver tile electrode holder, which enhances its reliability and longevity.

Application

It’s widely used in the seam welding of many different materials, such as non-ferrous metals, high-temperature alloys, low carbon steel, stainless steel, high-strength steel, galvanized steel, aluminum alloy, etc.

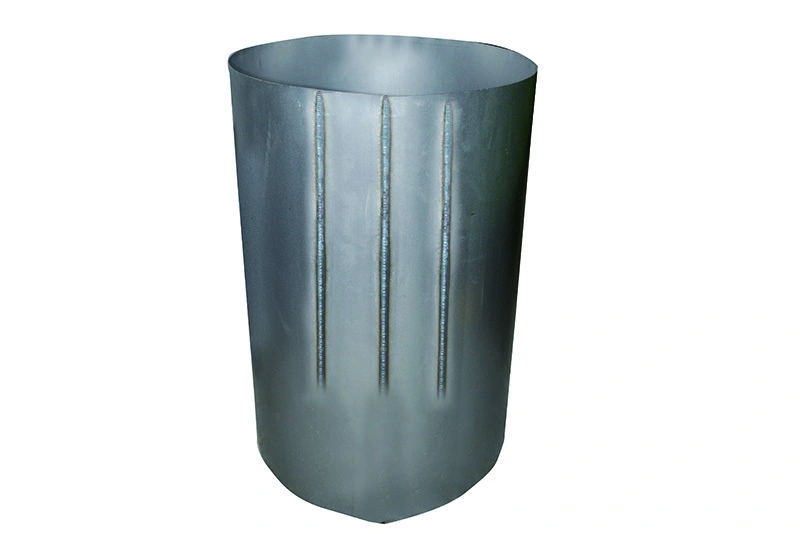

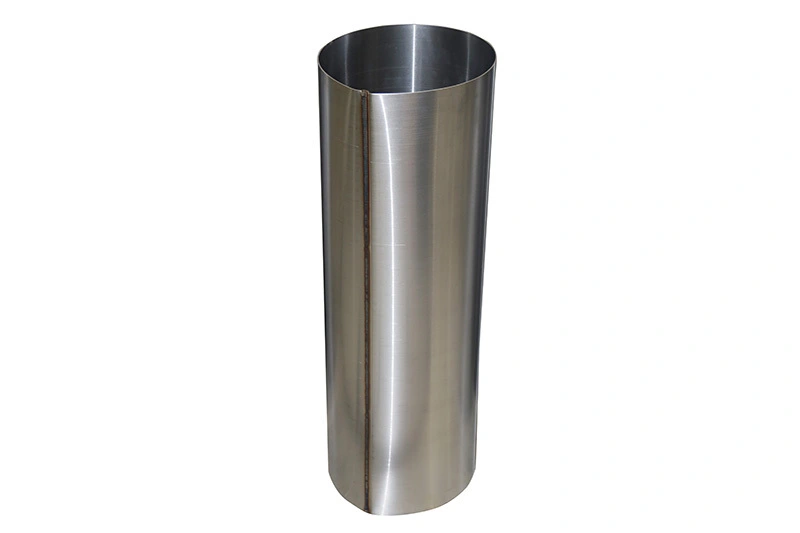

Welding Samples

Specification

Model #FN-50-L**FN-80-L**FN-100-L**FN-150-L**
Rated CapacityKVA5080100150
Power SupplyV/Φ/Hz380/3/50380/3/50380/3/50380/3/50
Max. Primary CurrentA93149186279
Primary CableMM25050120120
Max. Short Circuit CurrentKA14.519.4320.427.5
Rated  Duty Cycle%30303030
Secondary Empty VoltageV5.4\4.55.8\6.76.7\5.88.6\8
Welding Cylinder SizeΦ*LΦ100*60Φ125*80Φ160*80Φ160*80
Max. Working PressureN390060001000010000
Compressed Air PressureMPa0.6～0.70.6～0.70.6～0.70.6～0.7
Cooling Water ConsumptionL/MIN18202024
Compressed Air ConsumptionL/time2.283.565.845.84
Throat DepthMM1147114711471147
Arm GapMM115115115115
Electrode SizeMMΦ250*20Φ250*20Φ250*20Φ250*20
DimensionsH(MM)2368236823682368
L(MM)2274227422742274
W(MM)1263126312631263
