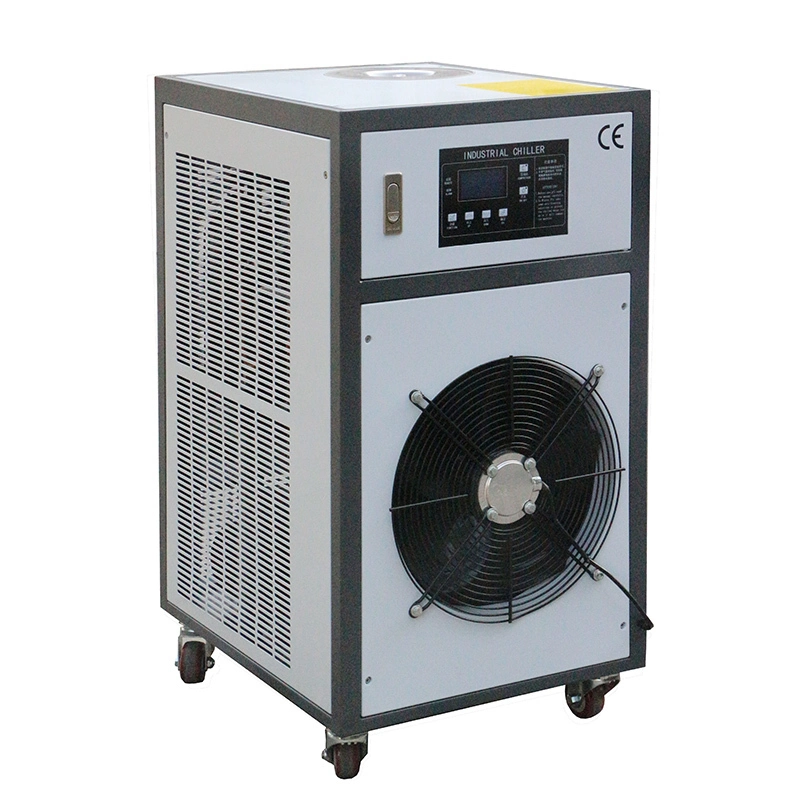

CL Series Laser Chiller

CL Series Laser Chiller

According to the characteristics of laser marking equipment and the needs of different customers, this CL Series Laser Chiller is designed and manufactured with special cooling system for various lasers equipment, and it is an indispensable equipment for the laser industry.

Model: CL Series Laser

MOQ: 1pcs

Price terms: FOB Guangzhou

Warranty: 1 year

After sale service: Free training service

Industries:  The laser industry

INQUIRY

Description

Laser marking technology is the most popular industrial processing in the late 20th century. At present, the research and development, production and processing enterprises engaged in laser marking machines, laser engraving machines, laser welding machines, laser printers, laser cutting machines and other laser processing equipment are constantly emerging. The cooling system is the most critical part of the laser marking operation

.

Product Features



● With microcomputer PLC control system to automatically control the whole machine operation and multi function error proof operating system.

● Take the original famous brand “SCHNEIDER” electrical components, ensuring the stable running and long service life.

● Stainless Steel water tank evaporator to avoid the solid and other metal impurities.

● Various models designed for different laser equipment, water temperature tolerance at ±1℃(±0.1℃) by precise digital control system. Push button operation, easy operation can hold by unprofessional personnel.

● Easy installation and compatible with equipment in any height.

● High efficiency heat exchanger in special design, and static spraying casing with compact size.

Specification

CL Series Laser chiller technical parameters
ModeCL-0.6CL-01CL-1.5CL-02CL-03CL-05CL-06CL-8(D)CL-10(D)CL-12DCL-15
Item
Nominal cooling capacityKcal/h12902451294144467155112231326117630224462652235948
50HZ/60HZ15482941352653328789134681573821156269353157943138
KW1.52.853.425.178.3213.0515.4220.526.130.8441.8
50HZ/60HZ1.83.424.16.210.2215.6618.324.631.336.7250.16
Total input powerKW0.7951.222.022.183.375.035.817.859.8911.814.7
Power supply voltage1PH~220V 50HZ／(60HZ)3PH~380V 50HZ(200V/220V/415V   50HZ/60HZ)
(110V 50HZ/60HZ)
RefrigerantTypeR22 (R134a/R407c/ R410A/R404A)
Control modeCapillary
Expansion valve
CompressorTypeHermetic rotating typeHermetic scroll type(Piston)
Power(KW)0.450.881.521.6952.814.14.883.31*24.1*24.88*212.4
CondenserTypeHigh efficient finned copper tube+low noise outer rotor fan
Cooling Air volume(m3/h)7501000150020003000500060008000100001200015000
EvaporatorTypeWater tank with coil
Chilled fluid flow (m3/h)0.2580.490.59         0.690.891.432.242.653.524.475.37.2
0.310.5891.0681.752.683.154.225.376.318.63
Tank volume (L)12152020505555110160160150
Inlet/ outlet pipe caliber1/2″1/2″1/2″1/2″1″1″1″1-1/2″1-1/2″2″2″
Drain outlet1／2１＂
Water pumpPower(kw)0.250.250.370.370.370.550.550.750.751.11.2
Pump head(m)2020202020202020202020
Flow switchOn＞3.5L/min,Off＜1.4L／minOn＞１６L/min, Off＜１０Ｌ／min
Safty protectionCompressor overheating , over current, high and low pressure, over temperature , flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing.
DimensionL (mm)530550600600930114011401320153015301850
W (mm)440440500500520560560720780780990
H (mm)7808509509501075114011401430154015401680
WeightKg60658484132165170275325350520
Note：1.nominal cooling capacity calculated according to:Inlet/outlet chilled fluid temperature : 12℃/7℃,  Inlet/outlet cooling air temperature: 30℃/35℃;
 2. Working condition:The temperature range of chilled fluid is from 5℃ to 35℃,  Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
 It is better to run the chiller while the ambient temperature at or below 35℃.
We reserve the right to modify the above information without further notice.
