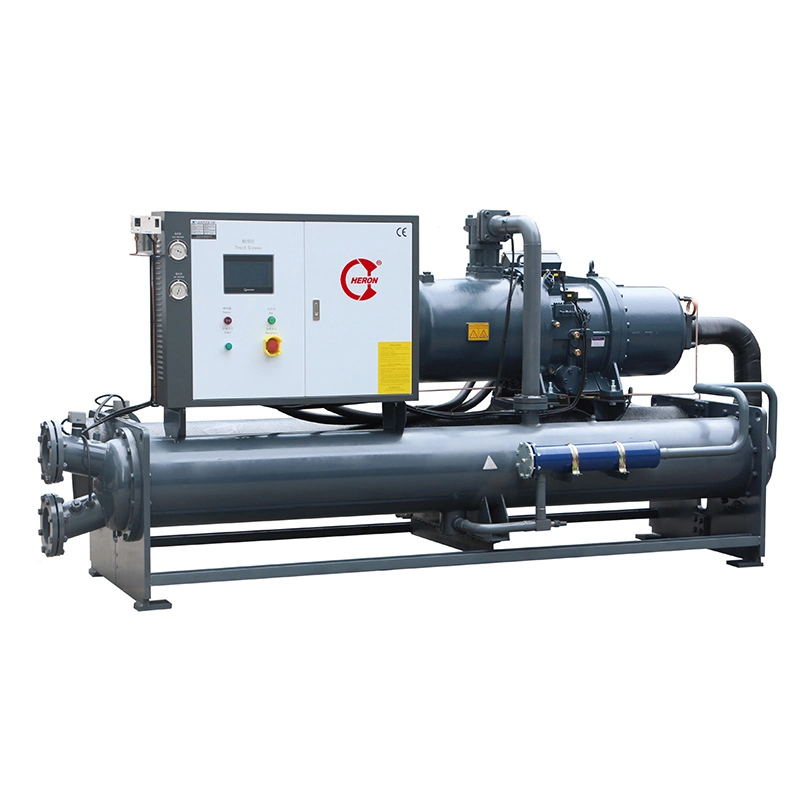

CSW Series Water Cooled Screw Type Chiller

This water cooled screw type chiller provides cold water from 5℃~35℃, which is widely used in plastic industry, electronics, plating, chemical, ultrasonic, printing and other industrial production lines. It can precisely control the temperature, which is requested during industrial processing, as it greatly improved the production efficiency and quality.

Model: Water cooled screw type

MOQ: 1pcs

Price terms: FOB Guangzhou

Warranty: 1 year

After sale service: Free training service

Industries: Plastic, electronics, plating, chemical, ultrasonic, printing and other industrial production lines.

Description

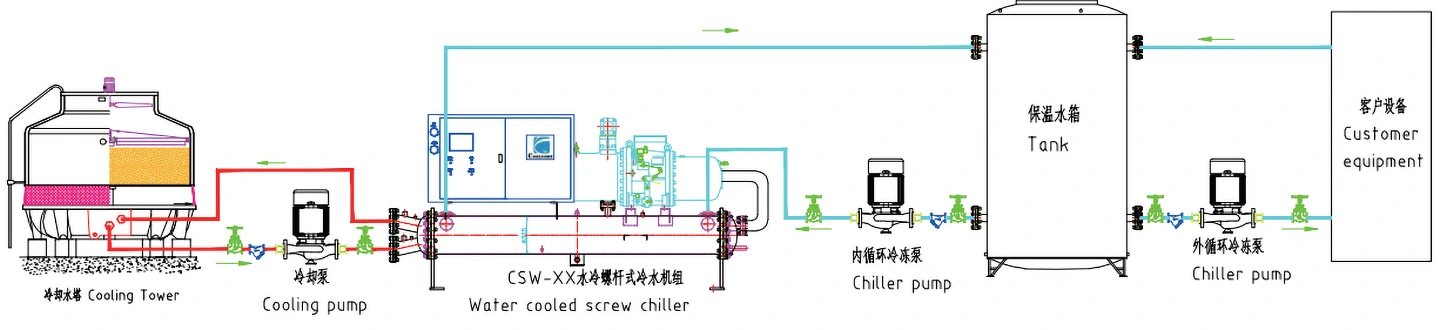

1. Water cooled screw type chiller dissipates heat through the external circulating water (Cooling Tower), which features high cooling efficiency, small installation area and low requirement on installation environment (indoor/outdoor). And it is an indispensable good partner of industrial production.

2. Water cooled screw type chiller is manufactured with international branded accessories. The compressor adopts a new high efficiency spiral rotor compressor, which is 20% 30% higher in efficiency than the general compressor. The chiller units are exported to the world in batches with global warranty. Customized design in power supply voltages and refrigerants are acceptable, which is in accordance with the working environment and the import & export standards of each country.

Specification

Technical paramters of Water cooled Screw Type Chiller ( Single head)
Item Mode			CSW-040	CSW-050	CSW-060	CSW-075	CSW-085	CSW-100	CSW-120
Nominal cooling capacity		kcal/h	102770	134848	144910	193844	228416	269180	314760
Nominal cooling capacity		kw	119.5	156.8	168.5	225.4	265.6	313	366
Total input power		kw	30.9	38.5	42.2	56	63	73	88.5
Max.running current		A	65	82	90	118	133.5	155	184
Power supply voltage			3PH-380V-50HZ(200V/220V/415V 50HZ/60HZ)
Refrigerant	Type		R22(R407c\R134a)
	Charge	kg	22	27	33	42	48	55	68
	Control mode		Thermostatic expansion valve
Compressor	Type		Semi-Hermetic screw type
	Power	kw	30.3	38	41.9	54.8	62.1	72.1	86.2
	Starting method	Y-△
	Capacity control type	%	0-33-66-100		0-25-50-75-100
Evaporator	Type		Shell and Tube
	Chilled fluid flow	m3/h	20.5	27	29	38.8	45.7	53.8	63
	Inlet/outlet pipe caliber	Inch	3″	3″	3″	3″	4″	4″	5″
Condenser	Type		Shell and Tube
	Cooling fluid flow	m3/h	25.8	33.5	36.2	48.2	56.4	66.2	77.7
	Inlet/outlet pipe caliber	Inch	3″	3″	3″	3″	4″	4″	5″
Safty protection
Safty protection		Compressor overheating, overloading, high/low pressure ,flow switch, phase sequence, phase-missing, Solube bolt, anti-freezing.
Dimension	L	mm	2500	2600	2800	3200	3000	3300	3700
	W	mm	740	740	740	740	1200	1200	1200
	H	mm	1600	1750	1750	1700	1502	1502	1600
Weight		kg	820	950	1120	1300	1560	1720	2030
Running weight		kg	970	1060	1270	1480	1780	1960	2250
Note： 1. Nominal cooling capacity calculated according to: Inlet /outlet chilled fluid temperature: 12℃/7℃, Inlet/ outlet cooling water temperature: 30℃/35℃. 2. Working condition:The temperature range of chilled fluid is from 5℃ to 30℃,The temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃, The temperature range of cooling water from 18℃ to 30℃ Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃ reserve the right to modify the above information without further notice.

Technical parameters of Water cooled Screw Type Chiller ( Double heads)
Item Mode			CSW-100D	CSW-12OD	CSW-150D	CSW-170D	CSW-200D	CSW-240D	CSW-280D	CSW-320D	CSW-360D	CSW-400D	CSW-440D	CSW-480D
Nominal cooling capacity		kcal/h	271760	295840	395600	466120	539048	642248	764368	883564	993644	1157216	1271080	1357080
Nominal cooling capacity		kw	316	344	460	542	626.8	746.8	888.8	1027.4	1155.4	1345.6	1478	1578
Total input power		kw	77	84.4	112	126	146	177	205.6	235.2	261.2	301	334	354.6
Max. running current		A	169	185	245	276	320	387	450	514	572	658	731	775
Power supply voltage			3PH-380V-50HZ(200V/220V/415V 50HZ/60HZ)
Refrigerant	Type		R22						R22
	Charge	kg	55	68	85	96	112	135	160	182	205	230	255	278
	Control mode		Thermostatic expansion valve
Compressort	Type		Semi-Hermetic screw type
	Power	kw	38.5*2	42.2*2	56*2	63*2	73*2	88.5*2	102.8*2	117.6*2	130.6*2	150.5*2	167*2	177.3*2
	Starting method		Y-△
	Capacity control type	%	0-25-50-75-100
Evaporator	Type		Shell and Tube
	Chilled fluid flow	m3/h	54.2	60.8	84.7	96.3	110.1	136.5	151.7	178.8	196	222.2	241	268.6
	Inlet/outlet pipe caliber	Inch	4″	5″	5″	6″	6″	6″	6″	6″	8″	8″	8″	8″
Condenser	Type		Shell and Tube
	Cooling water flow	m3/h	67.4	75.7	104.2	114.5	135.4	167.4	186.1	219.8	241.4	275.1	298.2	330.5
	Inlet/outlet pipe caliber	Inch	4″	5″	4″*2	4″*2	4″*2	4″*2	4″*2	4″*2	4″*2	6″*2	6″*2	6″*2
Safty protection
Safty protection			Compressor overheating, overloading, high/low pressure ,flow switch, phase sequence, phase-missing, Solube bolt, anti-freezing.
Dimension	L	mm	3300	2950	2950	3580	3800	3750	3750	3750	4230	4230	4230	4420
	W	mm	1100	1100	1100	1100	1100	1320	1320	1320	1580	1580	1580	1760
	H	mm	1750	1850	1850	1950	2150	2150	2150	2150	2230	2230	2230	2360
Weight		kg	1920	2250	2610	2820	3460	3920	4230	4730	5380	5810	5920	6450
Running weight		kg	2230	2550	2860	3240	3830	4330	4560	5150	5860	6050	6330	6730
Note： 1. Nominal cooling capacity calculated according to: Inlet/outlet chilled fluid temperature : 12℃/7℃.Inlet/outlet cooling water temperature: 30℃/35℃. 2. Working condition: The temperature range of chilled fluid is from 5℃ to 30℃ The temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃;The temperature range of cooling water from 18℃ to 30℃;Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃. We reserve the right to modify the above information without further notice

Specification

Technical parameters of Water cooled Screw Type Chiller (Four heads)
Item Mode			CSW-300F	CSW-34OF	CSW-400F	CSW-480F	CSW-560F	CSW-640F	CSW-720F
Nominal cooling capacity		kcal/h	849680	966640	1104240	1369120	1503280	1620240	2070880
Nominal cooling capacity		kw	988	1124	1284	1592	1748	1884	2408
Total input power		kw	227.2	260	296	361.2	390.4	448.8	543.6
Max.running current		A	496	560	640	780	884	1016	1164
Power supply voltage			3PH-380V-50HZ(200V/220V/415V 50HZ/60HZ)
Refrigerant	Type		R22
	Charge	kg	168	190	228	274	325	371	418
	Control mode		Thermostatic expansion valve
Compressor	Type		Semi-Hermetic screw type
	Power	kw	37.9×4	65×4	74×4	90.3×4	97.6×4	112.2×4	135.9×4
	Starting mode		Y-△
	Capacity control type	%	0-25-50-75-100
Evaporator	Type		Shell and Tube
	Chilled fluid flow	m3/h	169.4	192.7	220.1	272.9	299.7	323	412.8
	Inlet/Outlet pipe caliber	Inch	6″	8″	8″	10″	10″	10″	10″
Condenser	Type		Shell and Tube
	Cooling water flow	m3/h	208.3	237.3	270.9	334.8	366.6	399.9	506
	Inlet/outlet pipe caliber	Inch	5″×2	5″×2	6″×2	6″×2	8″×2	8″×2	8″×2
Safty protection		Compressor overheating, overloading, high/low pressure ,flow switch, phase sequence, phase-missing, Solube bolt, anti-freezing.
Dimension	L	mm	3860	3860	3860	4120	4310	4310	4310
	W	mm	1830	1950	1930	2130	2350	2350	2350
	H	mm	2350	2470	2560	2630	2630	2630	2750
Weight		kg	5030	5410	5850	7220	7850	8830	9860
Running weight		kg	5480	5870	6230	7630	8360	9420	10820
Note： 1. Nominal cooling capacity calculated according to: Inlet/outlet chilled fluid temperature : 12℃/7℃ Inlet/outlet cooling water temperature: 30℃/35℃ 2. Working condition: The temperature range of chilled fluid is from 5℃ to 30℃ Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃ The temperature range of cooling water from 18℃ to 30℃ Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃
