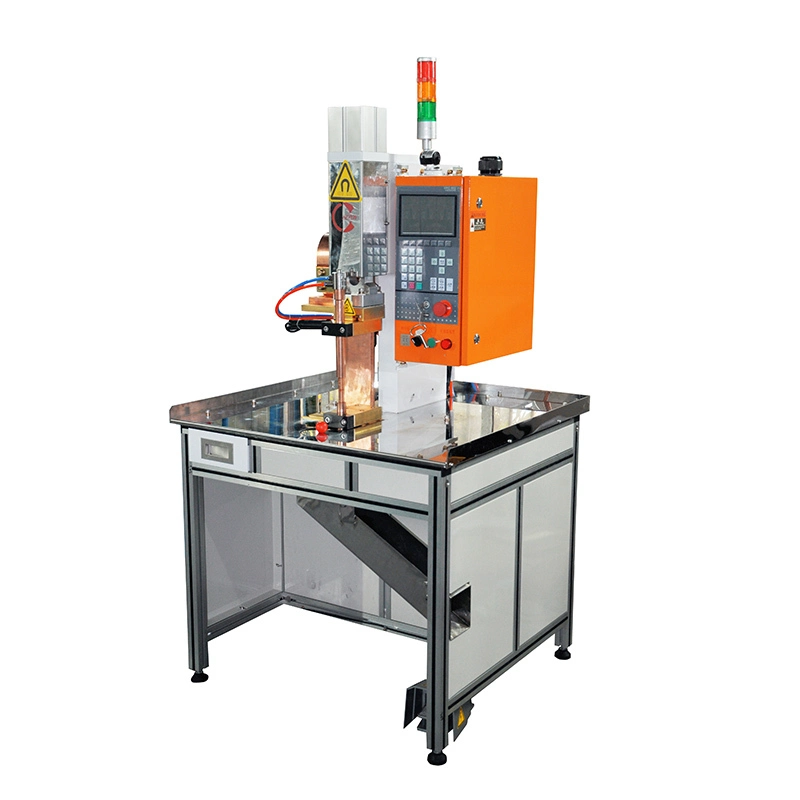

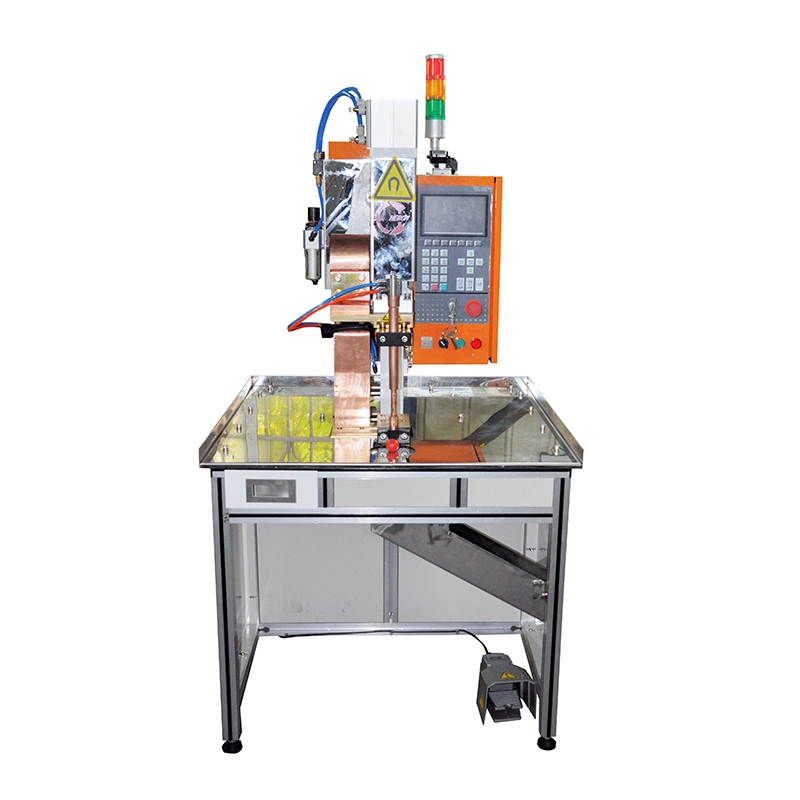

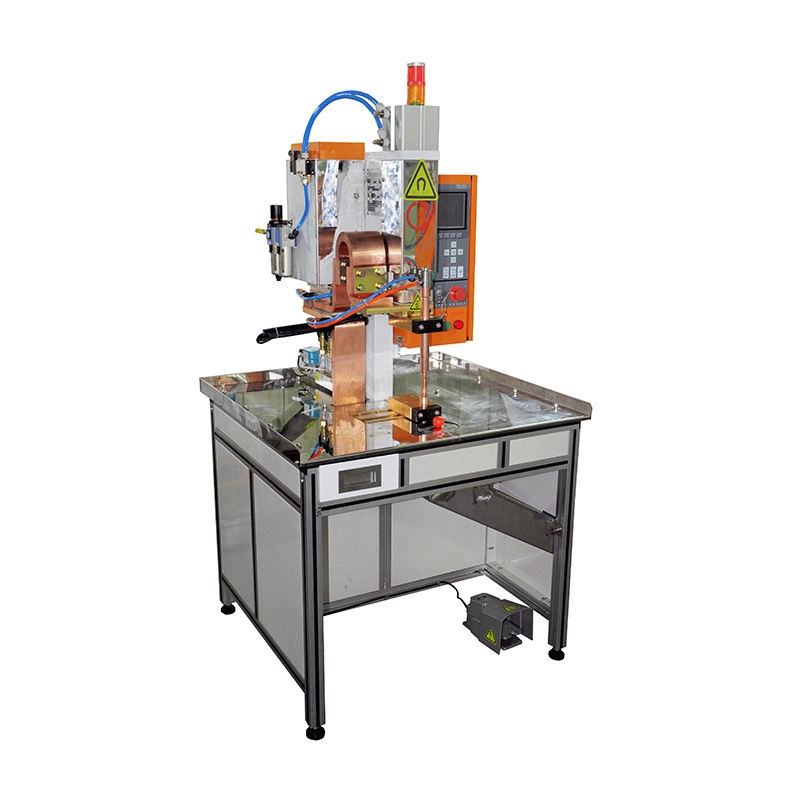

MFDC Bench Spot / Press Welders DB-220KVA

MFDC Bench Spot / Press Welders DB-220KVA

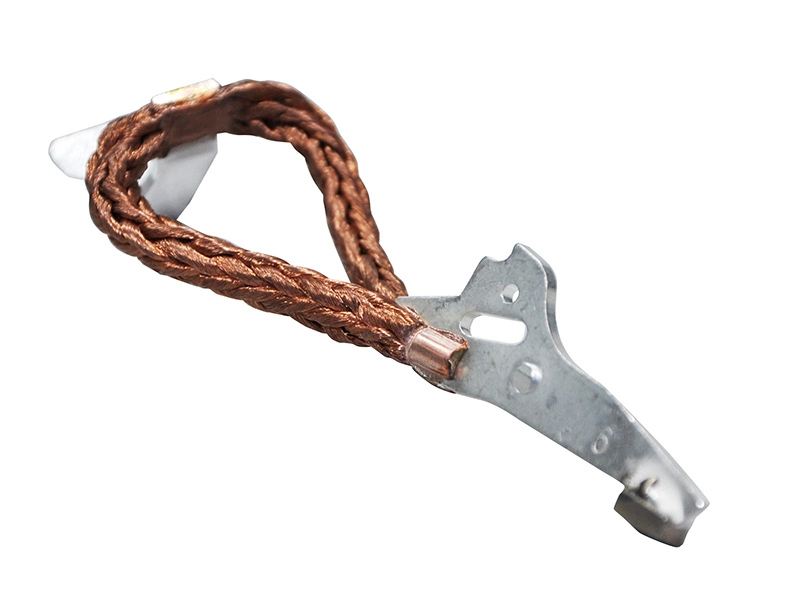

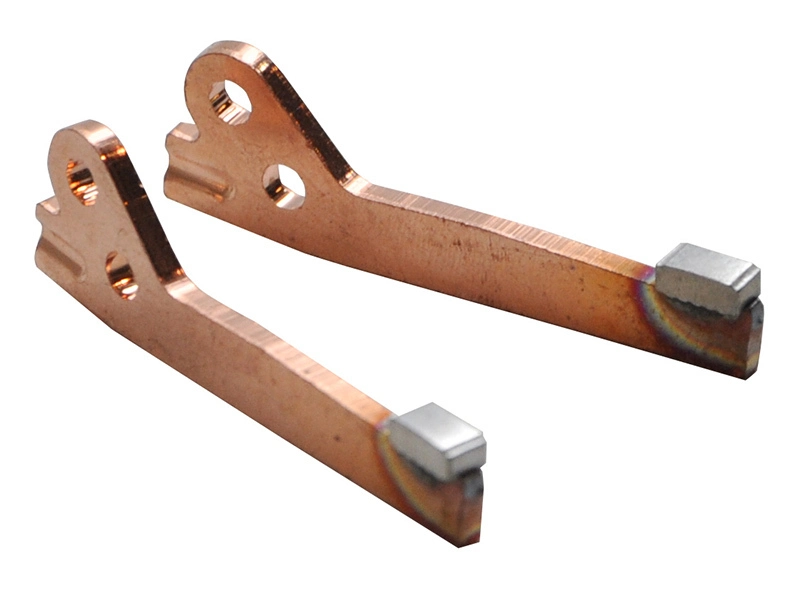

MFDC stationary spot welder and projection welders are mainly used for hardware welding and copper wire welding of low voltage electronic switch components.

Model: DB-220KVA

MOQ: 1pcs

Price terms: FOB Guangzhou

Warranty: 1 year

After sale service: Free training service

Industries: auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

Description

The power of our resistance welding machine is ranging from 25KVA to 150KVA.
The maximum short circuit current of our welding machine is ranging from 12KA to 34KA.
At air pressure of 6bar, the welding pressure of our welder is ranging from 2510N to 15000N.
Circular shaft guiderail pressure welding head is one of standard configuration of the type of welding machine.
The effective throat depth is 950mm.
One-stroke cylinder is standard configuration of our welding machine. Besides, double-stroke cylinder and servo electric cylinder is also compatible with our welding machine, which are optional for customers.

Main Features

Model #		DB-220-1	DB-25-1
Rated Capacity	KVA	220	25
Power Supply	V/Φ/Hz	380V/3/50Hz	380V/3/50Hz
Max. Primary Current	A	149	17
Primary Cable	MM2	35	16
Max. Short Circuit Current	KA	40	14
Rated Duty Cycle	%	20	20
Secondary Empty Voltage	V	10.4	7.2
Welding Cylinder Size	Φ*L	Φ100*50	Φ50*50
Max. Working Pressure	N	3920	1000
Compressed Air Pressure	MPa	0.6～0.7	0.6～0.7
Cooling Water Consumption	L/MIN	12	6
Compressed Air Consumption	L/time	2.28	0.54
Throat Depth	MM	239	235
Arm Gap	MM	258	230
Electrode Size	MM	Φ25.4	Φ25.4
Dimensions	H(MM)	964	1461/901
	L(MM)	707	831/672
	W(MM)	542	688/490
