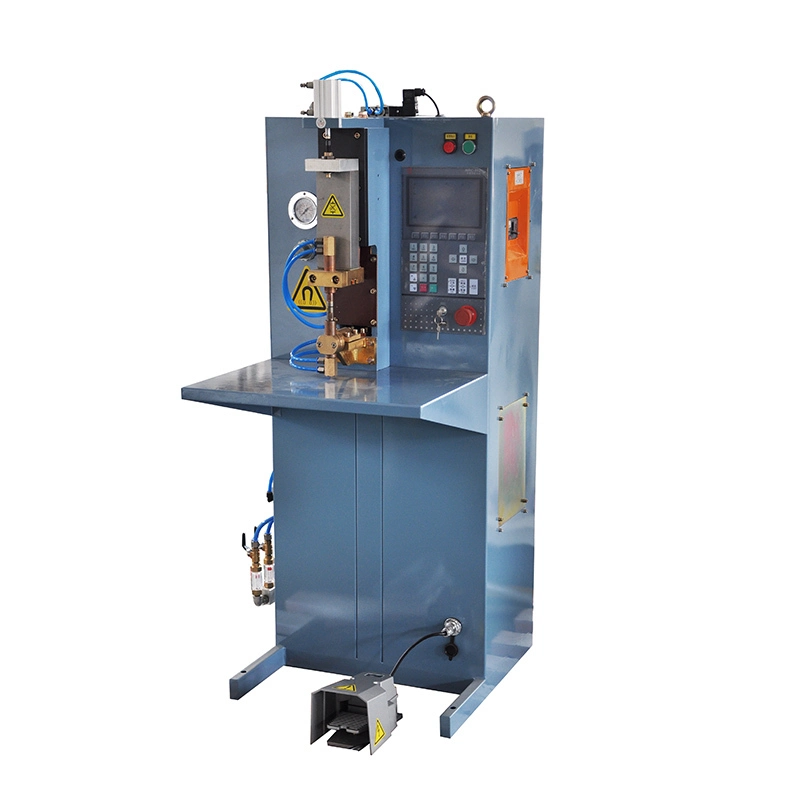

MFDC Bench Spot /Press Welders DB-55KVA
MFDC Bench Spot /Press Welders DB-55KVA - Image 2

MFDC Bench Spot /Press Welders DB-55KVA

With over 30 years of welding specification cloud databases and expert workmanship, Heron is able to help customers make better choices and customise professional welding specifications and site management guides to ensure weld quality.

Model: DB-55KVA

MOQ: 1pcs

Price terms: FOB Guangzhou

Warranty: 1 year

After sale service: Free training service

Industries: auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

INQUIRY

Description

The equipment is all independently developed, and the main components of the equipment are self-produced, which can ensure the delivery time of customers and the stability of products.

Main Features

Model #

DB-55-**1**

Rated Capacity

KVA

55

Power Supply

V/Φ/Hz

380V/3/50Hz

Max. Primary Current

A

63

Primary Cable

MM2

16

Max. Short Circuit Current

KA

18

Rated  Duty Cycle

%

20

Secondary Empty Voltage

V

8.9

Welding Cylinder Size

Φ*L

Φ32*50

Max. Working Pressure

N

394

Compressed Air Pressure

MPa

0.6～0.7

Cooling Water Consumption

L/MIN

6

Compressed Air Consumption

L/time

1.43

Throat Depth

MM

123.5

Arm Gap

MM

138

Electrode Size

MM

Φ25.4

Dimensions

H(MM)

1461

L(MM)

863

W(MM)

700

Application

It is widely used in automobile & auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

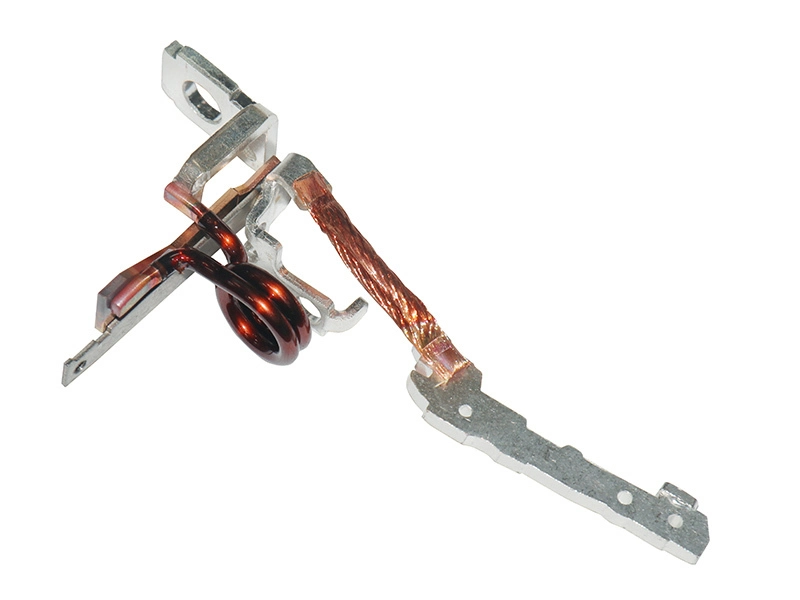

Welding Samples
