Rectifier MFDC Welder
The testing of the Rectifier MFDC Welder is strictly conducted.

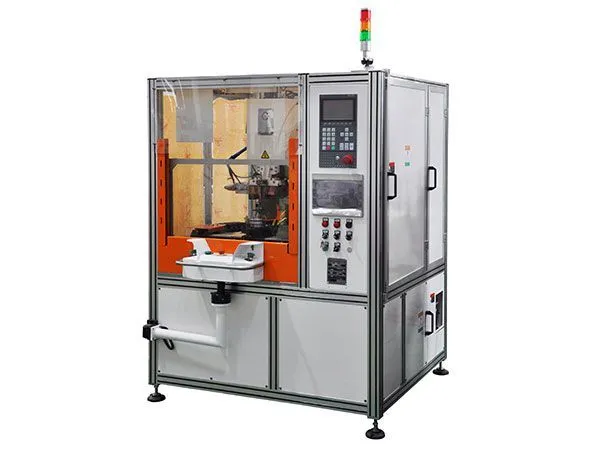

55KVA MFDC Welder for Rectifier Bridge DB-55-15001

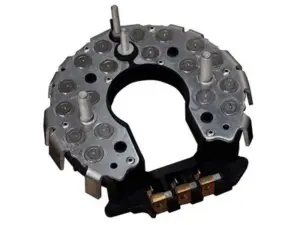

A rotating wheel is applied in the MFDC welder for rectifier bridge to rotate the welded item, thus welding all spots automatically.
Specifications
| Model # | DB-55-15001 | |
| Rated capacity | KVA | 55 |
| Power supply | V/Φ/HZ | 380/3/50 |
| Max. primary current | A | 105 |
| Max. Short Circuit Current | KA | 15 |
| Max. working pressure | KN | 1 |
| Dimensions (LxWxH) | mm | 1482x1160x2116 |
HERON Intelligent Equipment Co., Ltd. has achieved a business policy that to grow from small to large in Rectifier MFDC welder, motor welding solution, rectifier bridge processing device field.
Get in touch with us
Whether you are looking for a quotation or partnership support, we are happy to assist you.
