Robotic Spot Welding Gun

Robotic Spot Welding Gun

INQUIRY

Various sizes are available depending on the customer’s specific requirements.

Application
Robotic spot welding guns are primarily used for spot welding processes on the production line for auto body and cabinets.

Feature

  • The robotic spot welding gun can be quickly disassembled, thus saving time and making maintenance easier.
  • We utilize a unique design in order to effectively protect the aluminum electrode arm against corrosion.
  • The main body of our robotic spot welding gun uses a high strength aluminum alloy plate.
  • The electrode arm is known for its outstanding rigidity, which makes it better for spark reduction during the welding process.
  • MFDC DC transformers are suitable for frequencies of 1 or 2 KHz.
  • The rated capacity of a MFDC DC transformer is 55KVA/75KVA/165KVA/220KVA.

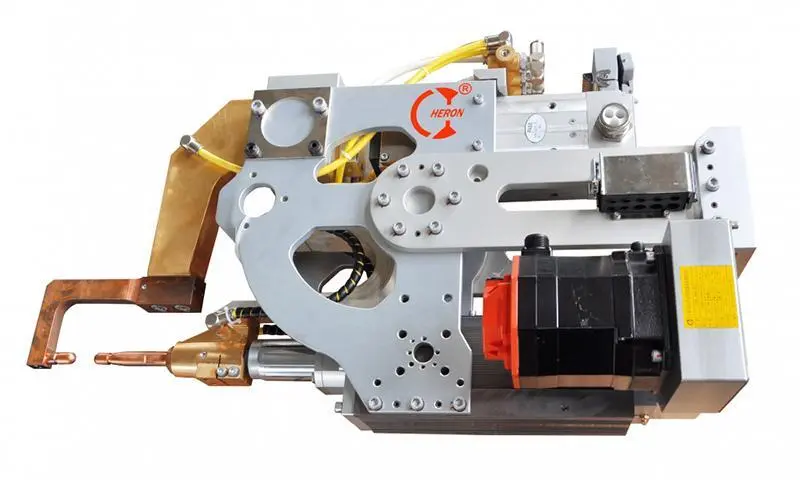

C type MFDC robotic spot welding gun
Model No DB6-075-C15003-00 DB6-110-C16001-00 DB6-110-C16027-00 DB6-110-C16025-00
Gross Weight（Kg） 115 95.5 104 113.2
Rated Capacity Of Transformer（KVA） 75 110 110 110
Arm Size(mm) 70*262 52*320 110*280 579*542
L*H*W （mm） 967*633*423 1056*530*310 1031*530*3020 1376*834*406
Max. Short Circuit Current（KA） 20 24 24 24
Max Stroke（mm） 105 131 78 120
Max Electrode Force（N） 4400 4500 4400 4000
Arm Deflection（mm） 1.35 ≤1.5 ≤1.5 ≤1.5
Electrode Off Centre（mm） ≤0.5 ≤0.5 ≤0.5 ≤0.5
Center OF Gravity（X/Y/Z,cm） 1.4/2/40.9 2.2/0.9/46.7 2.5/0.1/47.1 29.7/1/437.9
Arm Material Copper Copper Bar Copper Aviation aluminum
Connecting Way With Robot Top,Bottom,Left,Right,Rear
Servo Motor Apply to all Robot Brands and Can be integrated with EXLAR

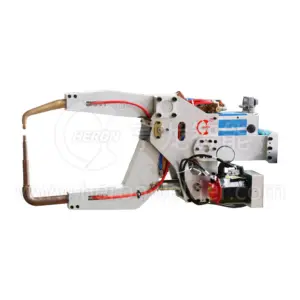

X type MFDC robotic spot welding gun
Model No DB6-075-X16005-00 DB6-110-X15013-00 DB6-110-X16048-00 DB6-110-X15007-00
Gross Weight（Kg） 95.5 119 113.2 140
Rated Capacity Of Transformer（KVA） 75 110 110 110
Arm Size(mm) 384*160 284*125 242*300 815*250
L*H*W （mm） 1161*532*302 1050*531*190 1121*537*302 1400*825*190
Max. Short Circuit Current（KA） 20 24 24 24
Max Stroke（mm） 179 139 120 300
Max Electrode Force（N） 3900 4400 5000 4000
Arm Deflection（mm） ≤1.5 ≤1.5 ≤1.5 ≤1.5
Electrode Off Centre（mm） ≤0.5 ≤0.5 ≤0.5 ≤0.5
Center OF Gravity（X/Y/Z,cm） 0.3/0.1/52.7 2.3/0.1/47.6 5.6/0.1/48.4 3/1.1/56.7
Arm Material Aviation aluminum Aviation aluminum Aviation aluminum Aviation aluminum
Connecting Way With Robot Top, Bottom, Left, Right, Rear
Servo Motor Apply to all Robot Brands and Can be integrated with EXLAR

Heron is engaged in making resistance welding system, is an experienced robotic spot welding gun manufacturer and welding solution provider. Since 1997 we have been offering wide range of AC resistance spot welders, DC resistance seam welders, MFDC resistance projection welding machines and robotic welding system for global customers.

HERON Intelligent Equipment Co., Ltd. has established and improved a quality assurance system that places the product’s performance indicators at the forefront of the industry.

Get in touch with us

Whether you are looking for a quotation or partnership support, we are happy to assist you.
