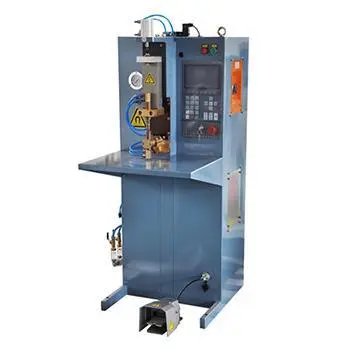

MFDC 25KVA-220KVA Stationary Spot Welder  and projection welder B series

Application
MFDC stationary spot welder and projection welders are mainly used for hardware welding and copper wire welding of low voltage electronic switch components.

Feature

  • The resistance welding machine power ranges between 25KVA to 220KVA.
  • The maximum short circuit current of our welding machine ranges between 15.5KA to 40KA.
  • At an air pressure of 6bar, the welding pressure of our welder reaches up to a range of 480~15000N.
  • The effective throat depth is 230mm.
  • One-stroke cylinder is standard configuration for our welding machine. However, because a double stroke cylinder and servo electric cylinder are both compatible with the welding equipment, customers can choose these cylinder options.

Technical parameter

Model # DB-25-**1** DB-55-**1** DB-110-**1** DB-165-**1** DB-220-**1**
Rated Capacity KVA 25 55 110 165 220
Power Supply V/Φ/Hz 380V/3/50Hz
Max Primary Current A 17 60 75 112 149
Primary Cable MM2 5*16 5*16 5*16 5*16 5*16
Max. Short Circuit Current KA 14 18 24 30 40
Rated Duty Cycle % 20 20 20 20 20
Secondary Empty Voltage V 7.2 7.8 10.4 13 10.4
Welding Cylinder Size Φ*L Φ50(32)*50 Φ63*50 Φ100*50 Φ100*50 Φ100*50
Max Working Pressure @ 0.5MPa N 1000 1500 3920 3920 3920
Compressed Air Pressure MPa 0.6～0.7 0.6～0.7 0.6～0.7 0.6～0.7 0.6～0.7
Cooling Water Consumption L/MIN 6 6 8 12 12
Compressed Air Consumption L/ welding spot 0.54 1.43 2.28 2.28 2.28
Throat Depth MM 235 203 231 235 239
Arm Gap MM 230 276 260 260 258
Electrode Size MM Φ25.4 Φ25.4 Φ25.4 Φ25.4 Φ25.4
Dimensions H(MM) 1461/901 1510 1478/954 1790/954 964
L(MM) 831/672 992 962/707 869/707 707
W(MM) 688/490 1220 1004/503 860/524 542

Heron is engaged in making resistance welding system, is an experienced 25KVA-220KVA Stationary Spot Welder manufacturer and welding solution provider. Since 1997 we have been offering wide range of MFDC stationary resistance spot welders, DC resistance seam welders, MFDC resistance projection welding machines and robotic welding system for global customers.
