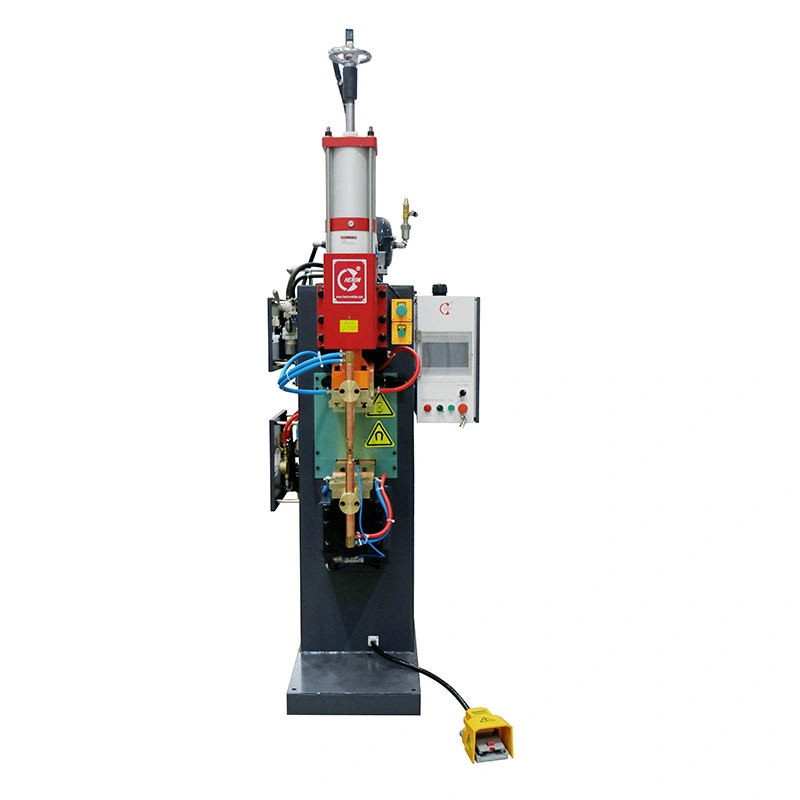

E type MFDC Spot & Projection Welder DB-250KVA

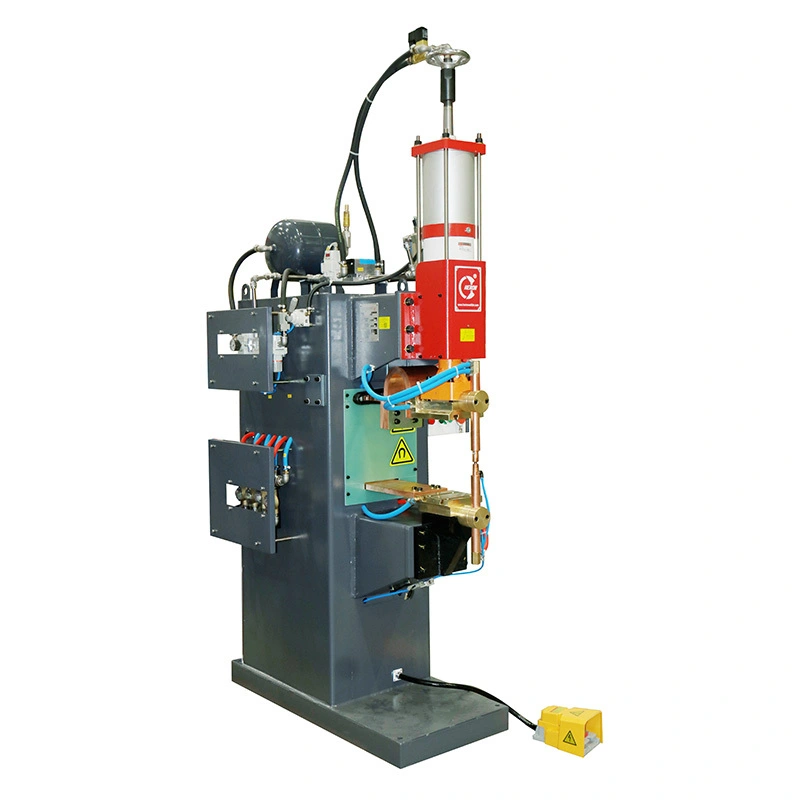

E type MFDC Spot & Projection Welder DB-250KVA - Image 2

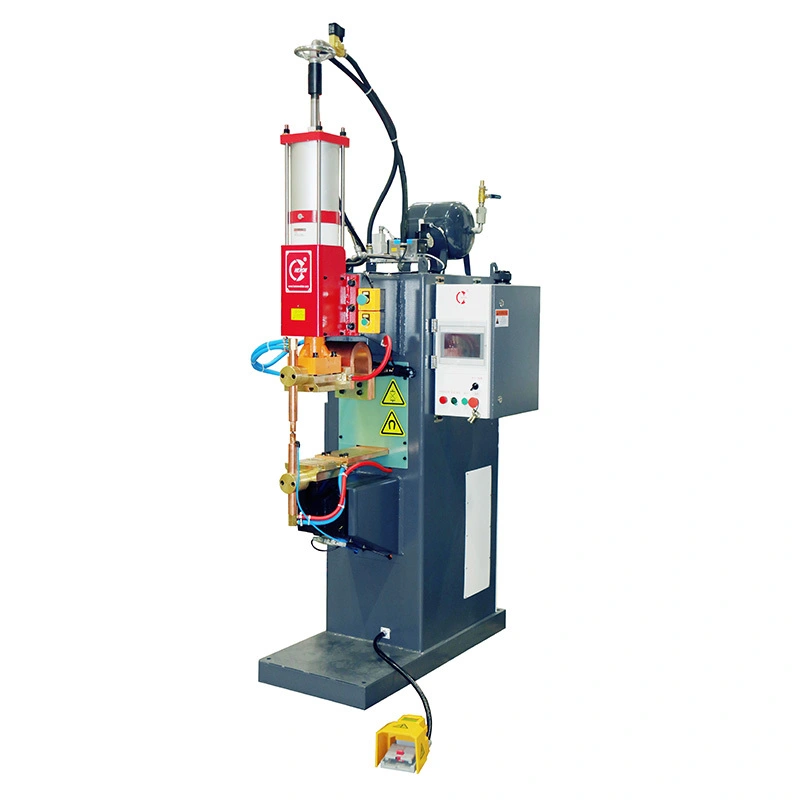

E type MFDC Spot & Projection Welder DB-250KVA - Image 3

E type MFDC Spot & Projection Welder DB-250KVA

Controller: HRC-802/803
Model: Type E; 250KVA
MOQ: 1pcs
Price terms: FOB Guangzhou
Warranty: 1 year
After sale service: Free training service
Industries: Auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Optional: Welding head: roller ram style/ round shaft guide Controller: HRC-802/803
INQUIRY

Description

The E type MFDC spot & projection welder DB-250KVA with roller ram and strong frame, which ensure excellent spot and reliable projection welding process, with the rise of welding current in 3ms and a maximum short-circuit current of 60KA.

Main Features

Welding head can be Roller ram or round shaft guide , cylinder specifications φ160 * 120
Equipment color Machine body : graphite gray RAL7024, back door signal white RAL9003;

control box: front :signal white RAL9003, body  graphite gray RAL7024

welding head : red RAT4L001
Water circuit Display table + flow switch
Controller HRC-802 (with PLC)
Throat depth 500mm
Platen gap 340mm
Power Available for 250KVA
Inverter size 600A/1200A
Electrode tile T-type (150 wide)
PLC Mitsubishi / Siemens optional
Touch screen Kunlun Tongtai
Feet Shock-absorbing feet

Application

Adopting Heron MF inverter controller HRC802/HRC803 and Heron MF transformer, it has exceptional rigidity, a compact design and less space occupation. Further, this product conforms to European CE and North American CUL standards. This machine adopts a DSP architecture that offers three frequency options of 1KHZ, 2KHZ, and 4KHZ, enabling stable and reliable welding. Moreover, it features its own I/O interface and can directly control the proportional valve, with modular design to simplify usage and maintenance

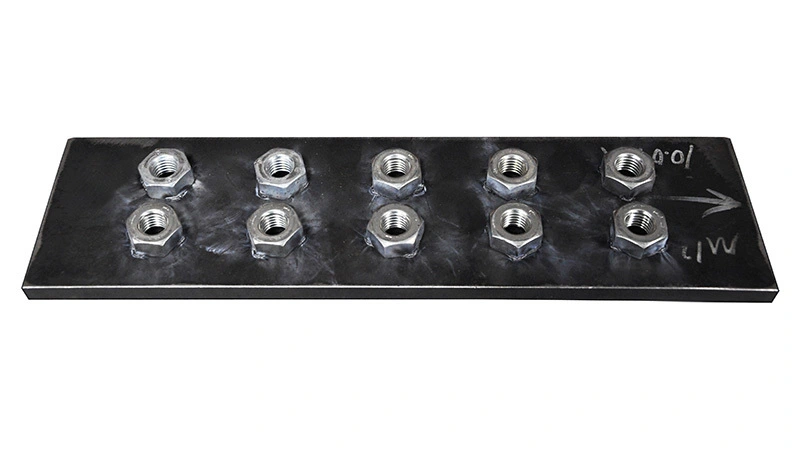

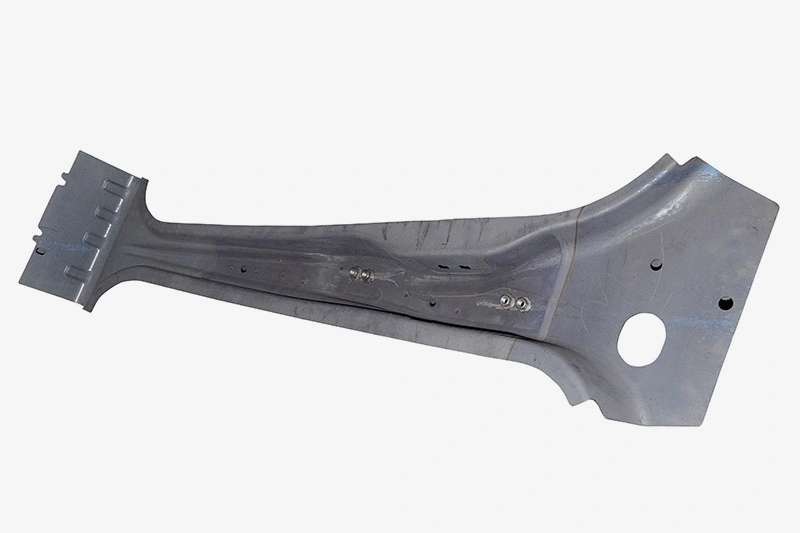

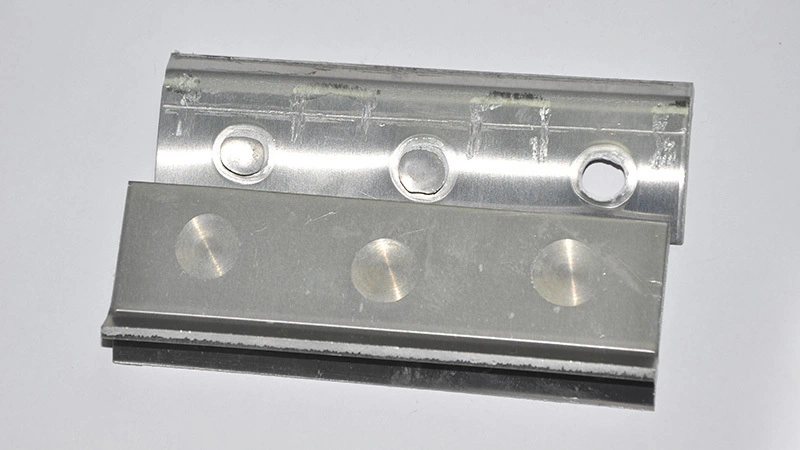

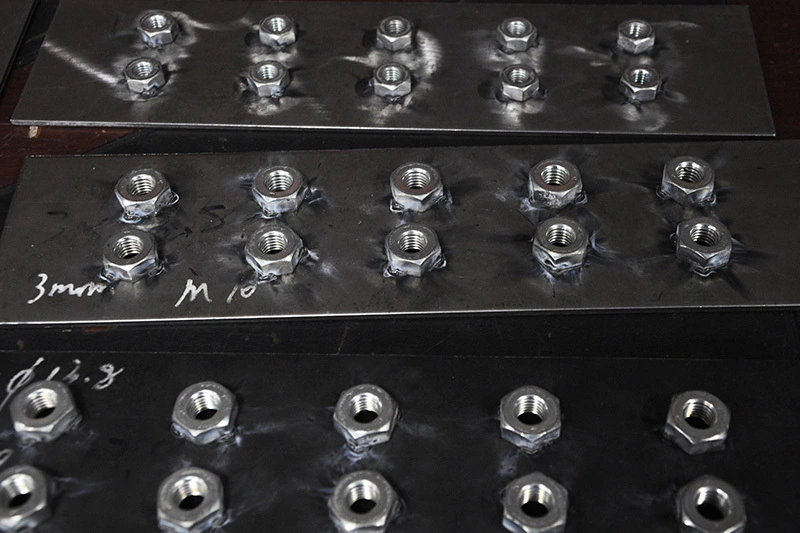

Welding Samples

Specification

Model DB-250
Rated Capacity KVA 250
Power Supply V/Φ/Hz
Max. Primary Current A 150
Primary Cable MM2 3*35+2*16
Max. Short Circuit Current KA 45
Rated Duty Cycle % 20
Secondary Empty Voltage V 12.5
Welding Cylinder Size Φ*L Φ200*100
Max. Working Pressure N 15359.8
Throat Depth MM 511
Arm Gap MM 524
Dimensions H(MM) 1900
L(MM) 1229
W(MM) 828
