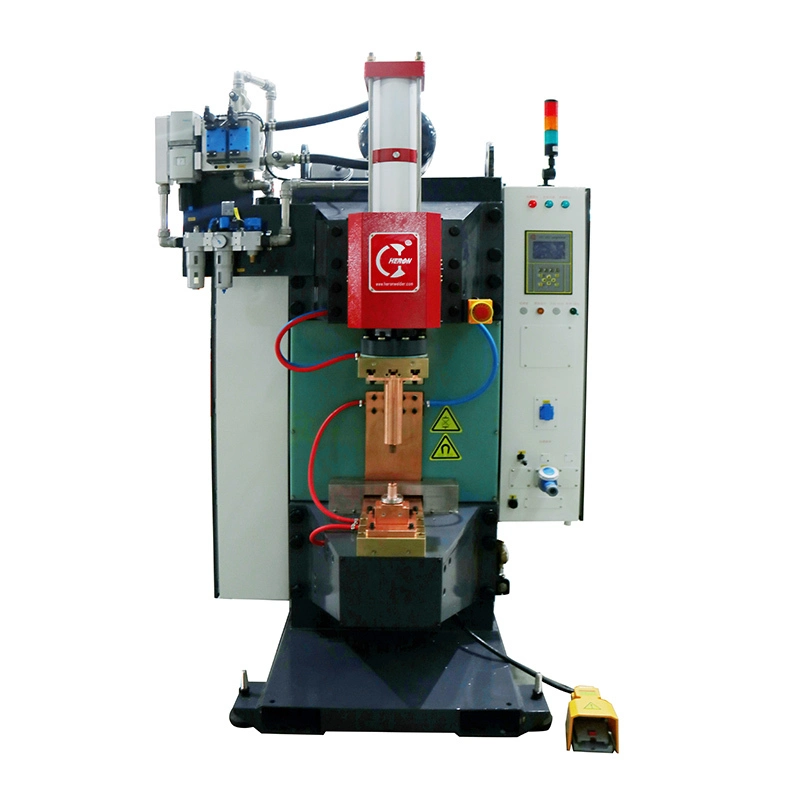

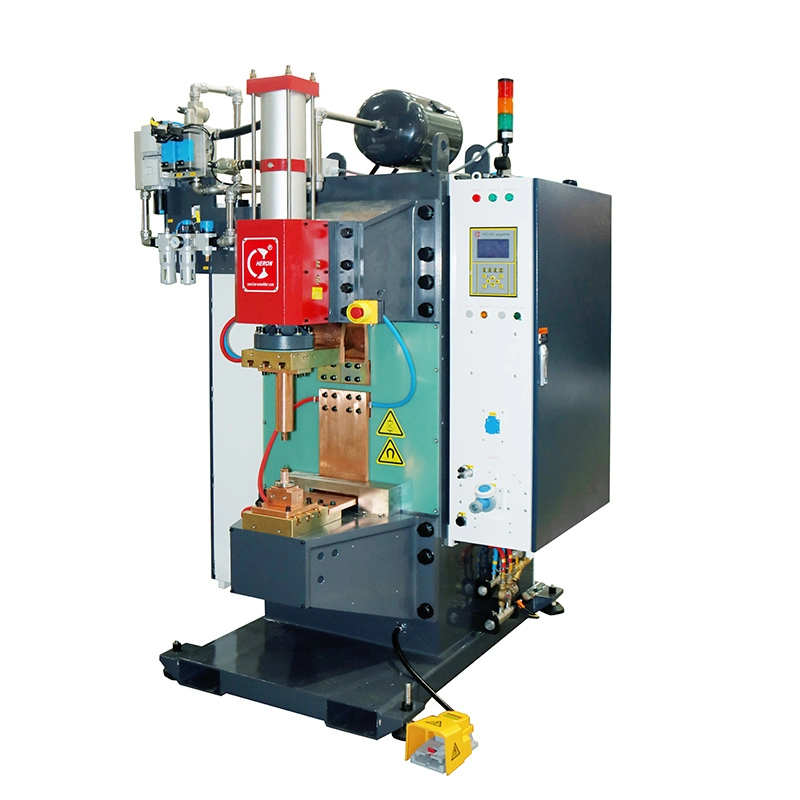

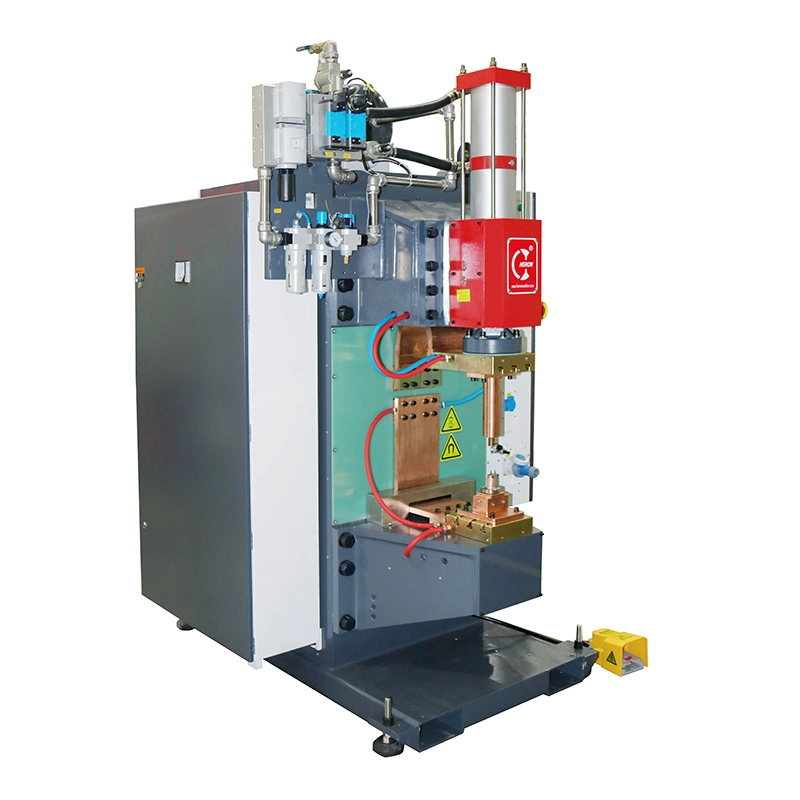

35KJ Capacitor Discharge Welder

Powerful current pulse can be output in 5~30 ms.Small heat-affected zone of the weld, low energy and electrode loss. With a charging time of only 1 second, this product boasts exceptional productivity.

Model: Type H; 35000J

MOQ: 1pcs

Price terms: FOB Guangzhou

Warranty: 1 year

After sale service: Free training service

Industries: auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

Description

Powerful current pulse can be output in 5~30 ms.
Small heat-affected zone of the weld, low energy and electrode loss.
The small requirements on the power grid can significantly reduce the power grid supporting, with negligible impact from the welding process.
HERON’s invention of medium-voltage capacitor discharge welding technology incorporates non-polar metal film capacitors that are resistant to decay and explosion, while also featuring a compact overall machine design.
Welding transformer without water cooling.
Short welding process and stable welding quality.
With a charging time of only 1 second, this product boasts exceptional productivity.

Specification

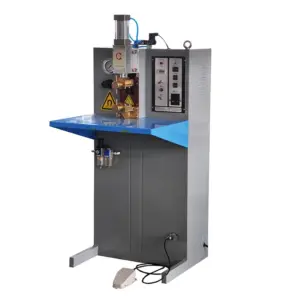

Model #		DR-35000	DR-1500
Volume of capacitor	μf	70000	15000
Rated Capacity	KVA	100	3
Power Supply	V/Φ/Hz	380/3/50	380/1/50
Max. Primary Current	A	158	14
Primary Cable	MM2	50	6
Max. Short Circuit Current	KA	175	20
Rated Duty Cycle	%	50	50
Secondary Empty Voltage	V	27/30	10
Welding Cylinder Size	Φ*L	Φ250*150	Φ80*60
Max. Working Pressure	N	24000	2500
Throat Depth	MM	400	353
Arm Gap	MM	500	220
Dimensions	H(MM)	2437	1459
	L(MM)	1500	1070
	W(MM)	1451	664

Application

Modular design, easy to use and maintain.It is widely used in automobile & auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

Welding Samples

Machine Configuration

Welding head can be	Roller ram or round shaft guide , cylinder specifications φ160 * 120
Machine body	Graphite gray ral7024, back door signal white ral9003;
Control box	Front: Signal white ral9003, body graphite gray ral7024
Welding head	Red rat4l001
Controller	Hrc-211
Throat depth	500mm, platen gap: 340mm
Rated capacity	35000J
