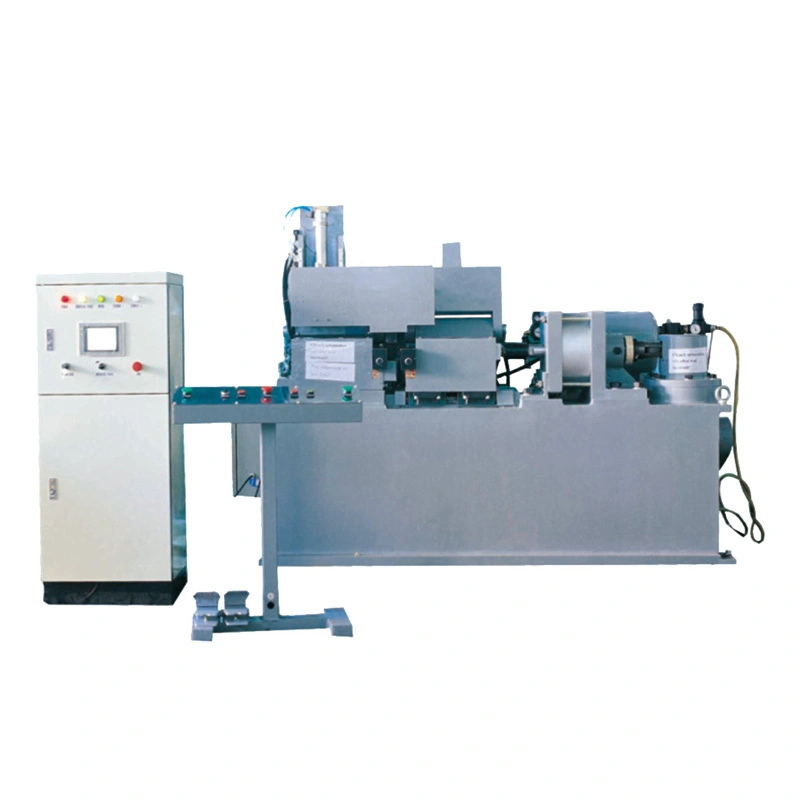

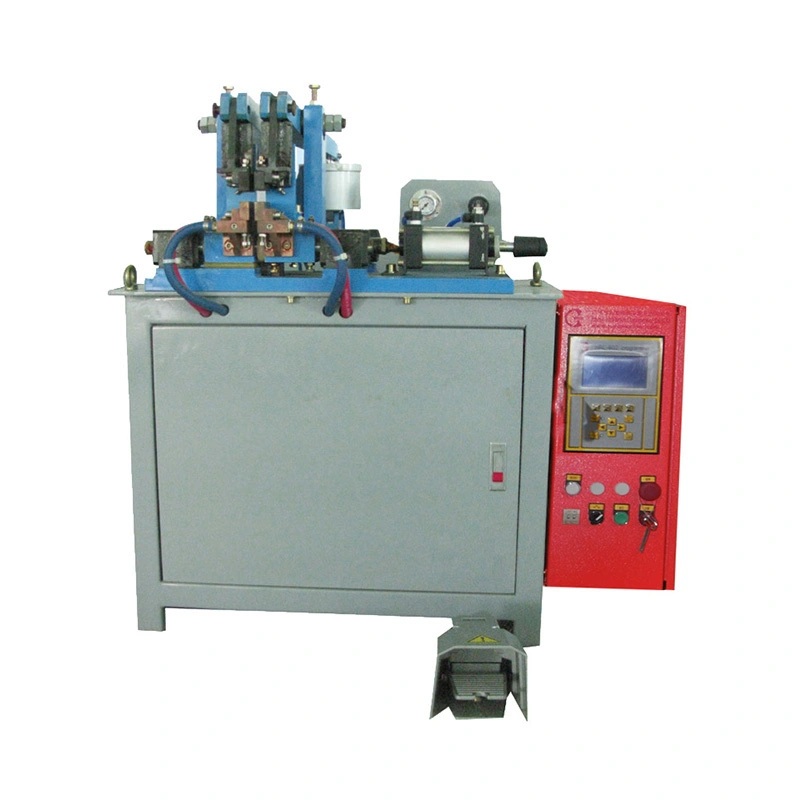

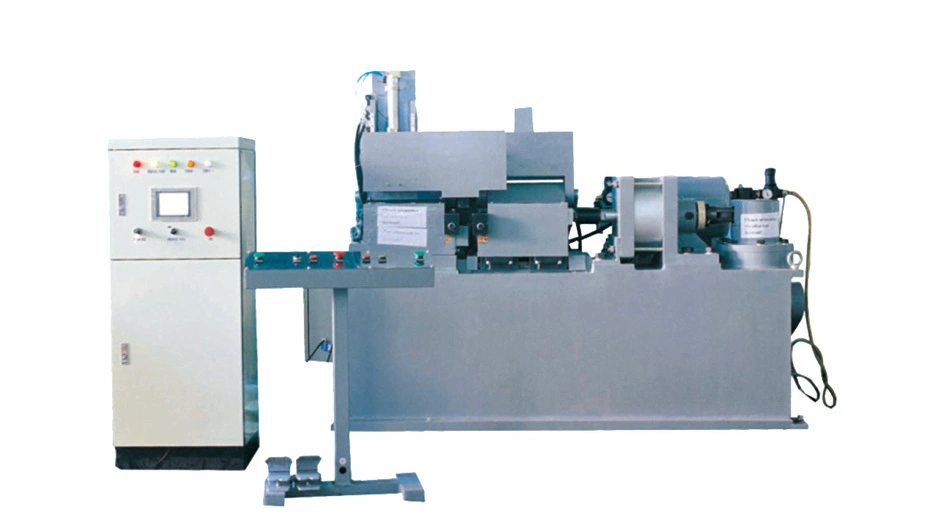

Butt Welder with level pressurize DN-25/35/50KVA
Model: DN-25/35/50KVA
MOQ: 1pcs
Price terms: FOB Guangzhou
Warranty: 1 year
After sale service:Free training service
Industries: Auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Description
It finishes the welding through controlling the flash flow through the moving speed of the moving bar, thereby achieving a molten state in the welding section. Upon cessation of power, it will move the electrodes to realize fast top forging.
Application
It’s widely used in the butt welding of many different materials, such as non-ferrous metals, high-temperature alloys, low carbon steel, stainless steel, high-strength steel, galvanized steel, aluminum alloy, etc.

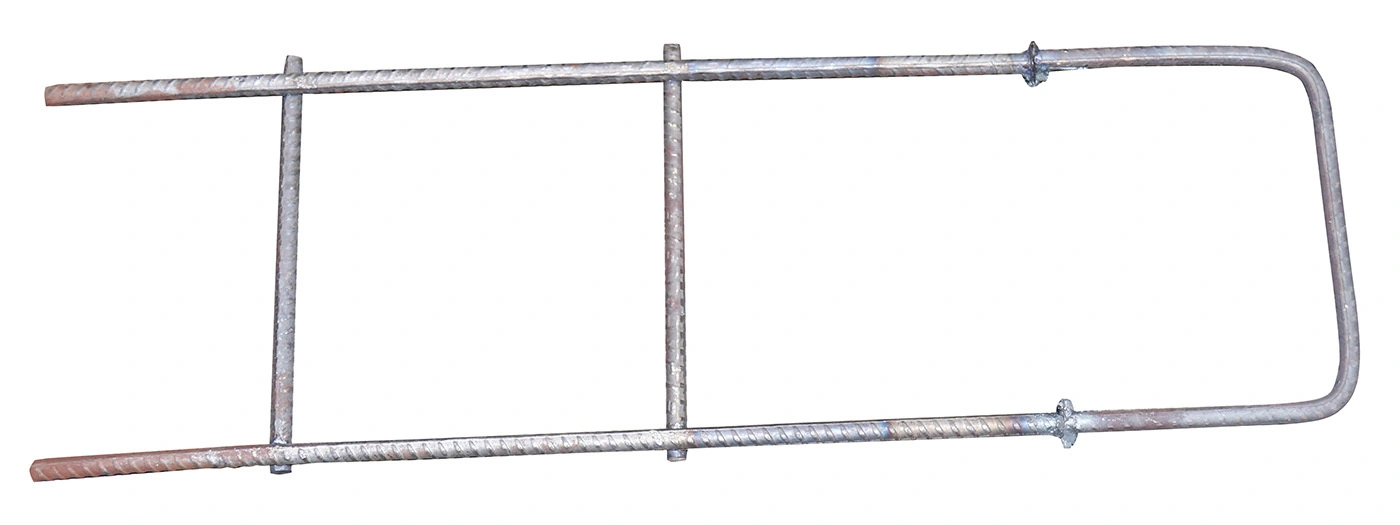

Welding Samples
Specification
| Model # | DN-25-U**1** | DN-35-U**1** | DN-50-U**1** | |
| Rated Capacity | KVA | 25 | 35 | 50 |
| Power Supply | V/Φ/Hz | 380V/1/50Hz | ||
| Max. Primary Current | A | 47 | 65 | 94 |
| Primary Cable | MM2 | 16 | 16 | 25 |
| Max. Short Circuit Current | KA | 15.5 | 19 | 24 |
| Rated Duty Cycle | % | 50 | 50 | 50 |
| Secondary Empty Voltage | V | 4.2 | 5.2 | 6.1 |
| Welding Cylinder Size | Φ*L | * | * | * |
| Max. Working Pressure | N | * | * | * |
| Compressed Air Pressure | MPa | 0.6～0.7 | 0.6～0.7 | 0.6～0.7 |
| Cooling Water Consumption | L/MIN | 6 | 6 | 8 |
| Compressed Air Consumption | L/time | * | * | |
| Throat Depth | MM | 596 | 596 | 596 |
| Arm Gap | MM | 198 | 198 | 198 |
| Electrode Size | MM | Φ31.75 | Φ31.75 | Φ31.75 |
| Dimensions | H(MM) | 1396 | 1396 | 1396 |
| L(MM) | 1391 | 1391 | 1391 | |
| W(MM) | 637 | 637 | 637 | |
