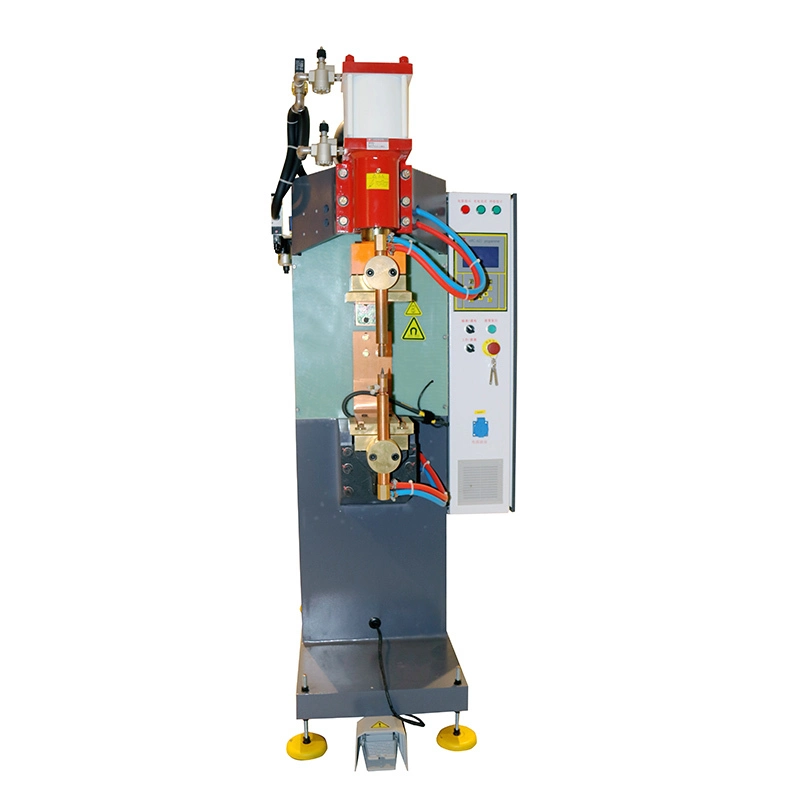

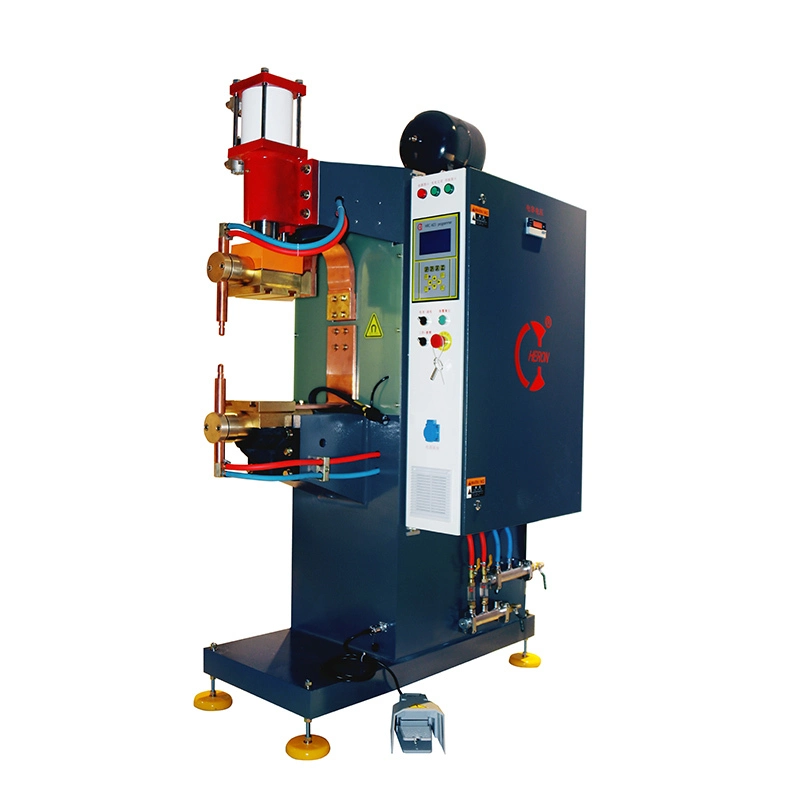

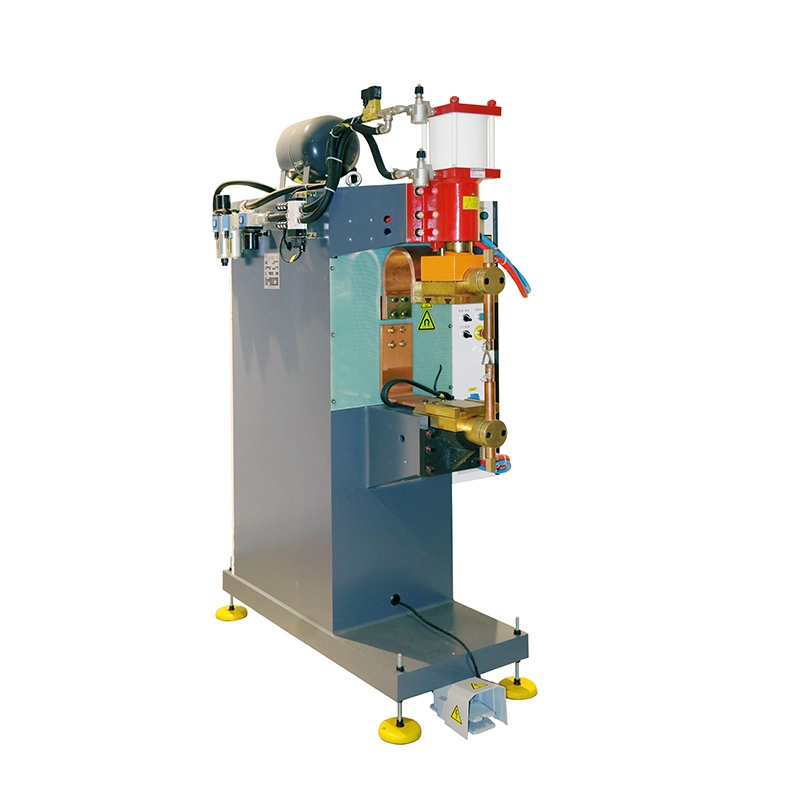

6KJ Capacitor Discharge Welder

This capacitor discharge resistance spot welding and projection welding machine is mainly applied to precise spot welding and small screw nut projection welding process.

Model: Type L; 6KJ

MOQ: 1pcs

Price terms: FOB Guangzhou

Warranty: 1 year

After sale service: Free training service

Industries: auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

Description

One-stroke cylinder is standard configuration of our welding machine. Besides, double-stroke cylinder and servo electric cylinder is also compatible with our welding machine, which are optional for customers.

Specification

Model #		DR-6000
Volume of capacitor	μf	60000
Rated Capacity	KVA	15
Power Supply	V/Φ/Hz	380/3/50
Max. Primary Current	A	40
Primary Cable	MM2	16
Max. Short Circuit Current	KA	58
Rated Duty Cycle	%	50
Secondary Empty Voltage	V	11/12
Welding Cylinder Size	Φ*L	Φ160*100
Max. Working Pressure	N	10000
Throat Depth	MM	450
Arm Gap	MM	313
Dimensions	H(MM)	1885
	L(MM)	1239
	W(MM)	754

Application

It is widely used in automobile & auto parts industry, home appliance industry, compressor industry, hardware industry, etc.

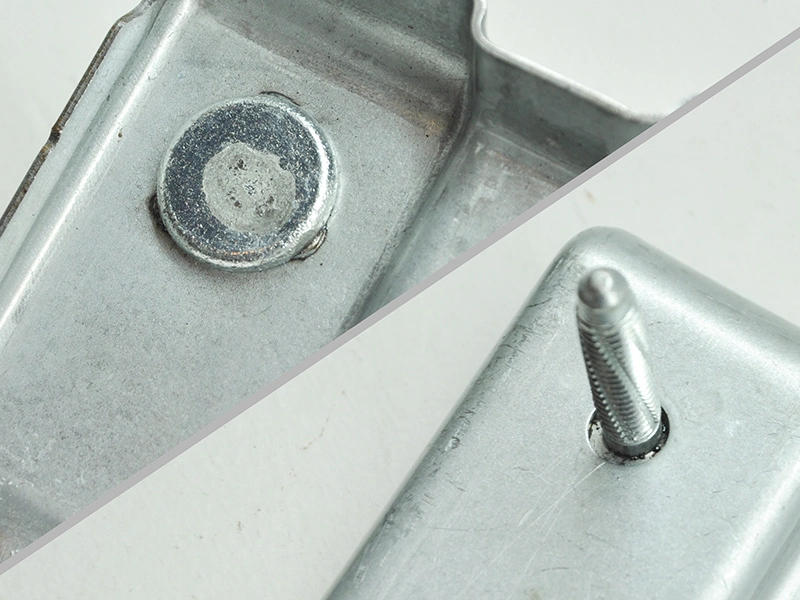

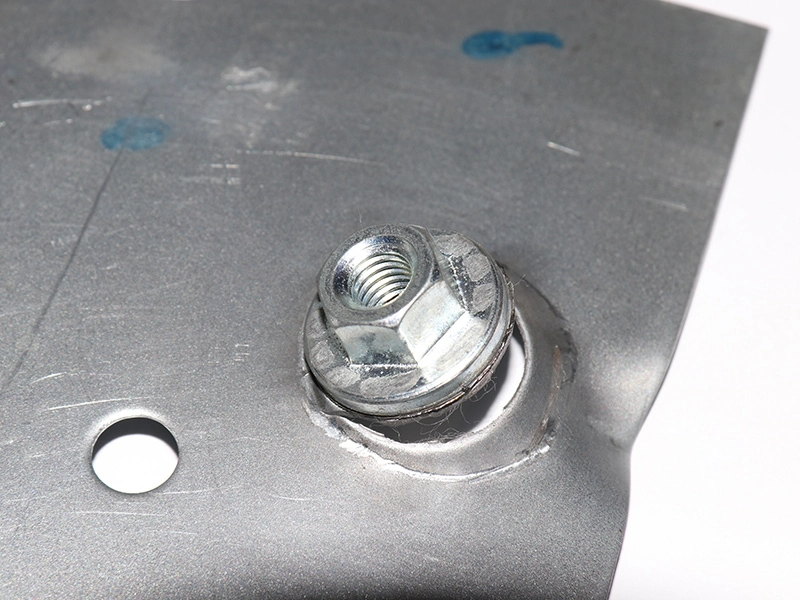

Welding Samples

Machine Configuration

Welding head can be	Roller ram or round shaft guide , cylinder specifications φ160 * 120
Machine body	Graphite gray ral7024, back door signal white ral9003
Control box	Front : Signal white ral9003, body graphite gray ral7024
Welding head	Red rat4l001
Controller	HRC-211
Throat depth	500mm, platen gap: 340mm
Rated capacity	6000J
