Spot welding guns are widely adopted for body assembly. In automotive body manufacturing, the A-pillar, B-pillar, and C-pillar are main structural parts of passenger safety cage, directly affect vehicle safety and body strength. Welding reinforcement patches is an essential process to boost local strength of these pillars. The operation requires reinforcement patches to be accurately welded onto the complex curved surfaces of the pillars, with consistent weld seams, stable weld nuggets, and zero incomplete fusion or burn-through defects. It also needs to accommodate the high-volume, high-speed production cycle time of the automotive industry.
Heron’s ZA0-F23083 gantry spot welding gun system (available with single or dual welding guns) features customized mechanical structures, high-precision control and advanced automated integration. It effectively addresses the technical challenges encountered when welding reinforcement patches on automotive A/B/C pillars, making it core production equipment for body-in-white assembly lines at major vehicle manufacturers.
I. Core Application Scenarios: Addressing Key Industry Challenges in Automotive A/B/C Pillar Patch Panel Welding

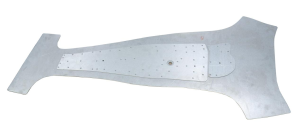

Automotive A/B/C pillar patch panels are typically made of low-carbon and high-strength steels. Welding these parts presents three critical manufacturing challenges:
1. Complex shapes and hard positioning
Pillars have curved surface The patches are small and require precise fitting. Manual positioning often results in misalignment.
2. Strict standards for weld quality
Welds need to handle impact loads and reach required tensile strength. No holes or cracks are allowed, and surface indentation must be kept minimal.
3. Strict cycle time requirements for mass production
Major car manufacturers produce more than 500 vehicles per shift. Welding each pillar must be finished within 60 seconds, which traditional equipment cannot accomplish.
The Heron ZA0-F23083 spot welding gun system supports single or dual welding guns and is custom-built for this application. It works with A/B/C pillar parts from major OEMs including BYD, GWM, XPeng, Xiaomi Auto and Chery. It forms a complete workflow: precision positioning → automatic welding → real-time quality check, fully meeting the strict standards for car body manufacturing.
II. Core Equipment Configuration: Medium Frequency Inverter Technology & Intelligent Spot Welding Gun System for Superior Performance
This single/dual spot welding gun system is developed around three core targets: stability, precision and efficiency. All critical components are self-developed to guarantee long-term consistent operation.
| Core components | Configuration details | Core Values |
| Main Structure | Gantry frame | High rigidity; avoids deformation during welding |
| Spot Welding Gun System | Single or dual spot welding gun available; welding gun travel: X-axis 1.2 m, Y-axis 0.8 m. | Dual spot welding guns can work at the same time to boost efficiency by 50% |
| Power System | 110KVA medium-frequency inverter DC power supply. Reaches target welding current within 3 ms; maximum short-circuit current: 24 kA | Concentrated heat and stable weld nugget. Saves 30% energy compared to AC welder. |
| Quality Monitoring System | Real-time collection of eight key parameters including current, voltage, force and displacement. Automatically checks weld quality to stop faulty parts from moving downstream. | |
| Chiller Circulation System | Recirculates cooling water, greatly cutting fresh water usage and water expenses. | |
| Fully Automatic Electrode Grinder | Online automatic grinding at fixed stroke intervals. Fully unmanned operation. Keeps electrode surface smooth and uniform, lowering welding defect rate by 40%. | |
III. Five Core Technological Advantages: From Welding Process to Intelligence Design, Surpassing Traditional Equipment
Heron gantry workstations with single/dual spot welding guns gain core strengths through seamless integration of process flexibility, automation and quality control, delivering five distinct competitive advantages:
1. Intelligent parallel operation: Dual-layer staggered tooling platform enables parallel part loading and welding
Overall equipment efficiency (OEE) has increased from 62% for traditional single-station equipment to over 88%.
Single-shift output improves by more than 40% compared to manual loading/unloading. One unit can replace one operator and effectively cut labor costs.
2. High-efficiency welding: Flexible switching between single and dual spot welding guns, with cycle time matching mass production requirements
Single spot welding gun mode: Total cycle for one pillar patch ≤ 45s (positioning + welding + inspection).
Dual spot welding gun mode: Weld multiple spots at the same time to shorten pillar processing time, perfectly matching automakers’ 60-second cycle time per unit.
Supports fast model changeover for multiple vehicle platforms to satisfy mixed-model production.
3. Controllable weld quality: Full-process monitoring achieves a weld pass rate ≥99.5%
Welding process monitoring: Real-time capture of eight key parameters — current, voltage, force, displacement and more. The system triggers alarms and stops welding once values go out of tolerance.
Data traceability: Connects seamlessly with customer MES systems. All welding records are saved automatically and traceable to each weld spot, fully meeting OEM quality compliance standards.
4. Flexible compatibility: Supports various patch sizes and different vehicle models
Applicable patch dimensions: 50×50 mm to 150×200 mm, thickness 1.0–3.5 mm. Compatible with low-carbon steel, HSLA steel and hot-stamped steel.
Spot welding gun angle adjustable ±45°, suitable for angled A-pillar surfaces, curved mid-sections of B-pillars and rear areas of C-pillars. No core component replacement required.
5. Safe and easy to maintain: Complies with automotive workshop safety standards with low running costs
Safety configuration: Light curtain safety protection, emergency stops and audible & visual alarms. Conforms to ISO 13849-1.
User-friendly maintenance: Quick disassembly for key parts including electrodes and servo motors; maintenance time ≤30 minutes. Annual equipment failure rate ≤0.5% to minimize production downtime.
This welding solution is already in use by well-known OEMs and Tier 1 suppliers including BYD, GAC Group, Tesla, COSMA and Gestamp.
Heron has supplied more than 2,000 resistance welders to the automotive sector. Our A/B/C pillar patch spot welding gun systems have been verified and running stably on mass production lines of major vehicle manufacturers.
Heron Welder supplies proven machinery for automotive body pillar structural welding worldwide. Rich on-site line experience and automotive process know-how help customers smoothly pass OEM supplier audits and gain access to leading automaker supply chains.
