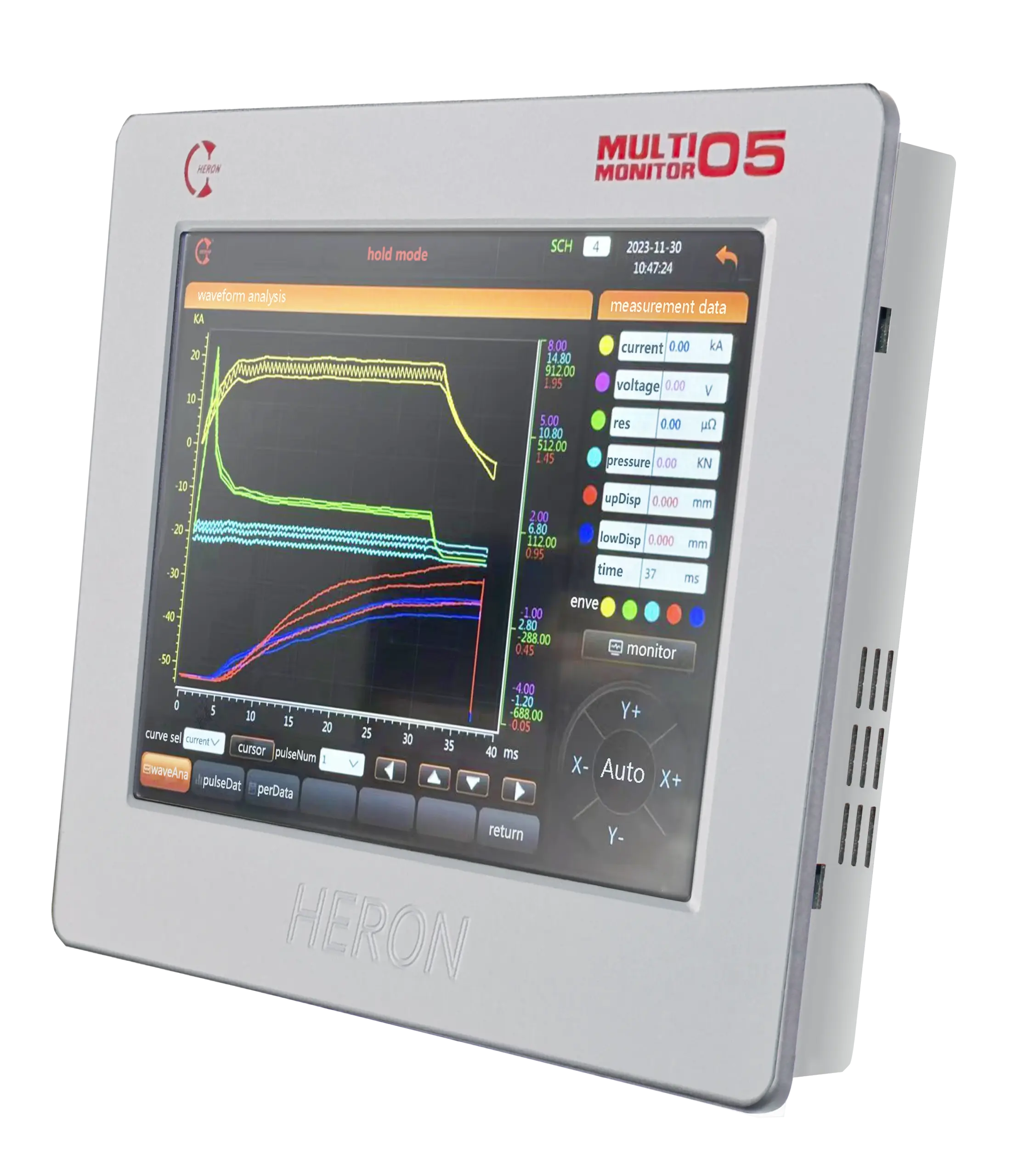

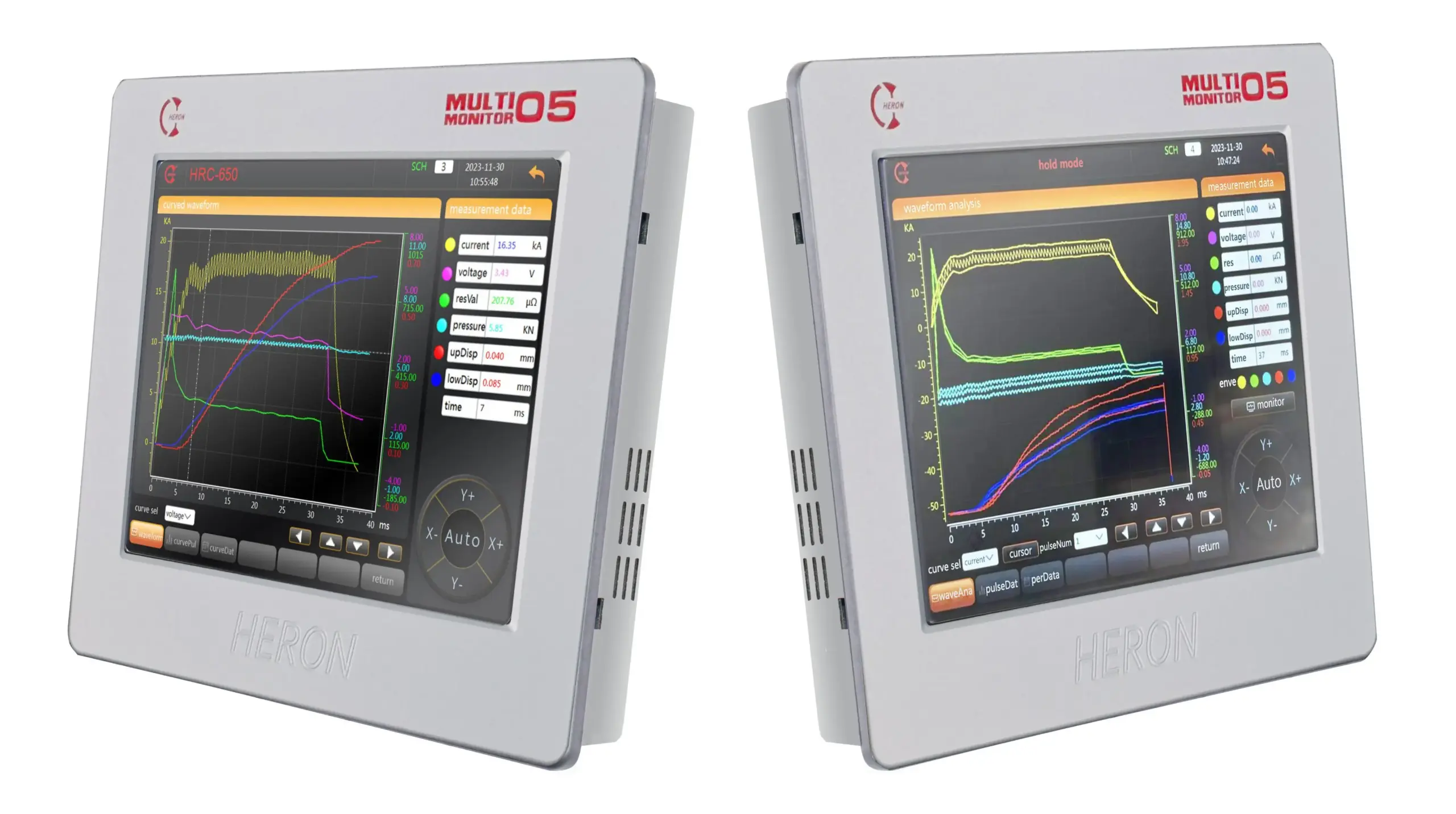

HRC650 resistance welding quality monitor

HRC650 resistance welding quality monitor

  • It’s the industry’s first professional device designed to simultaneously monitor 5 key welding parameters. It is capable of real-time monitoring, recording and analyzing almost all important process variables.
  • Support for measuring welding equipment such as medium frequency DC, AC (including AC frequency conversion), and capacitor discharge.
  • The collected data can be uploaded to the PC, cloud and user MES system through various communication methods such as Ethernet, 4G/5G network and serial port.
  • Makes analysis of the welding process simpler and production quality control more convenient. It greatly reduces the impact of frequent inspections on production continuity and quality control costs. Additionally, it can accurately confirm the quality of each welded joint.
INQUIRY

Description

An innovative and professional HRC650 resistance welding quality monitor.  It’s the industry’s first professional device designed to simultaneously monitor 5 key welding parameters. It is capable of real-time monitoring, recording and analyzing almost all important process variables.

Application

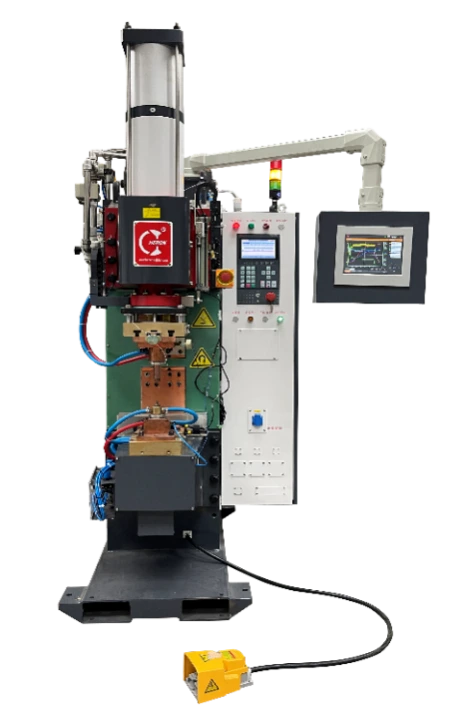

Suitable for the Capacitor Discharge Welders and the MFDC Welders. Please contact us for specific needs and specification options.

Specification

Welding current range: 6KA, 20KA, 60KA, 200kA, 1000KA; accuracy ±1%
Electrode voltage range: ±20V, ±60V; accuracy ±1%
Electrode pressure range: 2KN,10KN,50KN,200KN;accuracy ±1%
Displacement range:±30mm; accuracy ±0.005mm
Sampling rate：100Khz
Quality monitoring method
Set upper and lower limits/envelope
Trigger mode
Current/pressure
Data traceability
Support the storage of 10 million points of welding data.
Support curve comparison of up to 10 data records.
The built-in 32GSD card can store 30,000 full data files with a sampling rate of 100Khz and one million simplified files with a sampling rate of 1Khz.
File transfer protocol
Modbus tcp/rtu protocol, http protocol, ftp protocol
